SoWEMDiagnosis

InventorModule

genre	WEMInformation
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoWEM
definition	SoWEM.def
see also	WEMInfo
keywords	error, warning, check

Purpose

The SoWEMDiagnosis runs a full diagnostics on the input WEM and reports the resulting errors both as an Open Inventor scene and as a short and detailed list on its panel.

Usage

Just plug a WEM into the input. Optionally plug in the Open Inventor output to any 3D Viewer, together with the output of a SoWEMRenderer module.

Details

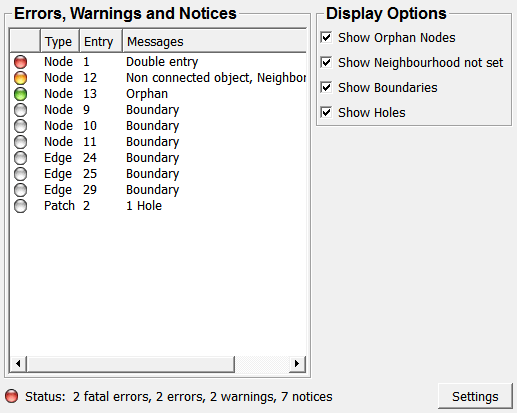

The main panel consists of four major parts.

1. On the left an overview of all errors, warnings, and notices with a short description of the occurred error is displayed.
2. On the top right Display Options are shown, which allow for filtering warnings and notices.
3. Below these Display Options is detailed information about the selected primitive.
4. At the bottom a status bar shows the total amount of errors, warnings, and notices and a global status of the input WEM.

As can be seen, each type of error has a different color indicating a different severity level of the error.

Icon	Meaning
	FATAL ERROR Other WEM modules using this mesh will not work (best-case scenario) but most likely, the module will crash or cause a segmentation fault. Fatal errors include double-linked primitives and invalid edges/faces.
	ERROR Although not fatal to other WEM modules, these errors are still severe enough to cause modules to fail. Errors include non-connected primitives, inverted normals, and invalid edge pointers.
	WARNING As the name suggests, these indicate certain issues about the mesh that should better be fixed if one wants to archive a perfect WEM. Warnings include orphan/redundant nodes, zero-length edges, and zero-area faces.
	NOTICE These are totally harmless! Notices include boundaries, flat regions, and concave faces.

Each entry in the list can be selected, upon which more information about the error and primitive are shown at the right side of the panel. Use the display options to limit the amount of warnings and/or notices that are shown. This applies to both the displayed list and the Open Inventor scene. Using the settings button at the bottom right, one can also enable the merging of error messages into one single entry in the displayed list.

This is the full list of fatals, errors, warnings, and notices, and their meaning.

Nodes:

Icon	Message	Meaning
	Double Entry	The node has a double listing for an edge/face; removing the edge/face results in an invalid listing.
	Non Connected	The node has an edge or face that is not connected to it. Either the node has an edge or face too many, or the relationship between both is otherwise broken.
	Bad Normal Length	The node normal has a length different from 1. Since the node normal is calculated from the incident face normals, this means something is wrong with the surrounding faces. For instance, their area is zero, resulting in a normal (0,0,0) and as such resulting in a node normal (0,0,0).
	Dead End	The node has only one edge. This does not represent a valid 2-manifold.
	Orphan	The node has no incident edges nor faces. Since it has no link with the rest of the mesh, it can safely be removed.
	Redundant/Collinear	The node has two incident edges and faces and can be removed. This is certainly the case if this node and the other nodes from the incident edges are also collinear.
	Neighborhood Not Set	The node has no edges and is not an orphan, but the WEM itself claims to have egdes. Edge relationship for this node should be built.
	Boundary	The node is part of an edge that has only one incident face, with the other being NULL, indicating a boundary.
	Flat Region	The maximum angle between the node normal and the normals of the incident faces is less than one degree.
	Valence 3	The node has an edge valence of three, meaning there are three incident edges belonging to three incident triangles. Each edge is shared by two of these three triangles. This allows for merging these three triangles into one larger triangle. Nodes with a valence of three result in an undesirable triangle configuration and should be avoided whenever possible.

Edges:

Icon	Message	Meaning
	NULL Head	The head of the winged-edge is NULL, making it an invalid edge.
	NULL Tail	The tail of the winged-edge is NULL, making it an invalid edge.
	NULL Pointer	One of this edge’s edge pointers (lPred, lSucc, rPred or rSucc) is NULL. This indicates an invalid or partially set edge neighborhood.
	Equal Pointer	One of this edge’s edge pointers (lPred, lSucc, rPred or rSucc) is equal to another of those edge pointers. This is most likely the consequence of an illegal operation, which leaves the edge neighborhood broken or not updated.
	Non Connected Pointer	One of this edge’s edge pointers (lPred, lSucc, rPred or rSucc) is not connected to either the head or tail of this edge.
	Edge Pointer Link	One of this edge’s edge pointers (lPred, lSucc, rPred or rSucc) does not link back to this edge.
	Circular Pointer	One of this edge’s edge pointers (lPred, lSucc, rPred or rSucc) points to this edge.
	Order	The order of the edges for the left or right face of this edge are not in the correct order to belong to a left or right face.
	Fold	The edge creates a fold on the mesh. Two incident faces of an edge are folding if their normals make an angle of approximate 180 degrees.
	Zero Length	The edge has zero length. As a result, the triangles to which this edge belongs have an area of zero.
	Neighborhood Not Set	The edge has no edge pointers (lSucc, lPred, rSucc and rPred), but the WEM itself claims to have edges. Edge relationship for this edge should be built.
	Boundary	The edge is part of a boundary, having only one incident face and the other being NULL.

Faces:

Icon	Message	Meaning
	NULL Node	The face has a node that is NULL.
	NULL Edge	The face has an edge that is NULL.
	Invalid	The amount of nodes and edges for this face differs. This does not represent a valid face.
	Double Entry	The face has a double listing for a node/edge. Removing the node/edge results in an invalid listing.
	Non Connected	The face has a node/edge that does not link back to this face.
	Edge Offset	The order of nodes and edges for this face is not the same. Suppose i to be the index of the node in the nodes list of this face: node i and node i+1 are not part of edge i. This is required by a lot of WEM modules.
	Normal Inverted	The normal is inverted. This only applies to (concave) faces where the normal was wrongfully calculated.
	Zero Area	The face has a zero area. This also means at least one of the edges has a zero length. The face should be removed since it is not visible.
	Bad Normal Length	The normal of the face has a length different from 1. This most likely results from having a zero area resulting in a normal (0,0,0) with length 0.
	Neighborhood Not Set	The face has no edges, but the WEM itself claims to have edges. Edge relationship for this face should be built.
	Concave	The face is concave. Actually, this should be avoided since rendering these faces may result in visual artifacts.

Windows

SoWEMDiagnosis

Settings

Input Fields

inputWEM

name: inputWEM, type: WEM(MLBase)

The WEM to be diagnosed.

For accessing this object via scripting see the Scripting Reference: MLWEMWrapper.

Output Fields

self

name: self, type: SoNode

The Open Inventor scene containing the parts of the WEM where anything out of the ordinary was diagnosed.

Parameter Fields

Field Index

Alpha (nodeAlpha): Float	numHoles: Integer	selectedErrorString: String
Alpha (edgeAlpha): Float	numInverted: Integer	selectedType: Integer
Alpha (faceAlpha): Float	numNeighborhood: Integer	shouldUpdate: Trigger
boundingBoxCaching: Enum	numNotice: Integer	Show boundaries: Bool
Elevation: Float	numOrphan: Integer	Show collinear nodes: Bool
errorString: String	numRedundant: Integer	Show concave faces: Bool
hitFaceEntryNum: Integer	numValence3: Integer	Show duplicate nodes: Bool
Max Num Displayed Errors: Integer	numWarning: Integer	Show flat regions: Bool
Max. Displayed Messages: Bool	numZeroSize: Integer	Show holes: Bool
numBoundary: Integer	patchAlpha: Float	Show inverted: Bool
numCollinear: Integer	pickCulling: Enum	Show neighborhood not set: Bool
numConcave: Integer	renderCaching: Enum	Show nodes with valence 3: Bool
numDuplicateNodes: Integer	renderCulling: Enum	Show orphan nodes: Bool
numError: Integer	Scale (scaleNodes): Float	Show redundant nodes: Bool
numFatal: Integer	Scale (scaleEdges): Float	Show zero-size primitives: Bool
numFlatRegion: Integer	selectedEntry: Integer	Status: String

Visible Fields

Alpha (nodeAlpha)

name: nodeAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Sets the alpha value for the rendered nodes.

Alpha (edgeAlpha)

name: edgeAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Sets the alpha value for the rendered edges.

Alpha (faceAlpha)

name: faceAlpha, type: Float, default: 0.40000001, minimum: 0, maximum: 1

Sets the alpha value for the rendered faces.

Scale (scaleNodes)

name: scaleNodes, type: Float, default: 2, minimum: 0.1, maximum: 10

Sets the scaling factor for the size of the displayed nodes.

Scale (scaleEdges)

name: scaleEdges, type: Float, default: 1, minimum: 0.1, maximum: 10

Sets the scaling factor for the thickness of the displayed edges.

Elevation

name: faceElevation, type: Float, default: 0.1

Sets how much the faces are elevated into the normal direction to enhance their visibility.

Show redundant nodes

name: showRedundant, type: Bool, default: TRUE

If checked, redundant nodes are detected and displayed.

Show collinear nodes

name: showCollinear, type: Bool, default: TRUE

If checked, collinear nodes are detected and displayed.

Show orphan nodes

name: showOrphan, type: Bool, default: TRUE

If checked, orphan nodes are detected and displayed.

Show flat regions

name: showFlatRegion, type: Bool, default: TRUE

If checked, flat regions (adjacent faces have the same normal) are detected and displayed.

Show boundaries

name: showBoundary, type: Bool, default: TRUE

If checked, boundaries are detected and displayed.

Show concave faces

name: showConcave, type: Bool, default: TRUE

If checked, concave faces are detected and displayed.

Show neighborhood not set

name: showNeighborhood, type: Bool, default: TRUE, deprecated name: showNeighbourhood

If checked, non-set neighborhood primitives (missing pointers) are detected and displayed.

Show zero-size primitives

name: showZeroSize, type: Bool, default: TRUE

If checked, zero-size primitives (faces and edges) are detected and displayed.

Show nodes with valence 3

name: showValence3, type: Bool, default: TRUE

If checked, nodes with a valence of 3 (three edges attached) are detected and displayed. Those nodes typically do not contribute to the overall geometry but spoil the rendering because of their contribution to the normal calculation.

Show duplicate nodes

name: showDuplicateNodes, type: Bool, default: TRUE

If checked, duplicate nodes (share the same position) are detected and displayed.

Show holes

name: showHoles, type: Bool, default: TRUE

If checked, holes are detected and displayed.

Show inverted

name: showInverted, type: Bool, default: TRUE

If checked, inverted faces are detected and displayed.

Max. Displayed Messages

name: useMaxNumDisplayedErrors, type: Bool, default: TRUE

If checked, the Max Num Displayed Errors is used to limit the amount of displayed single errors.

Max Num Displayed Errors

name: maxNumDisplayedErrors, type: Integer, default: 10, minimum: 10

Sets the maximum number of displayed single errors. If there are more errors than this number, they are collected into one, but the Open Inventor output will still feature all erroneous primitives.

Status

name: status, type: String

Shows the status of this module. The icon shows the worst detected state.

Hidden Fields

renderCaching

name: renderCaching, type: Enum, default: AUTO

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

boundingBoxCaching

name: boundingBoxCaching, type: Enum, default: AUTO

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

renderCulling

name: renderCulling, type: Enum, default: AUTO

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

pickCulling

name: pickCulling, type: Enum, default: AUTO

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

patchAlpha

name: patchAlpha, type: Float, default: 1

hitFaceEntryNum

name: hitFaceEntryNum, type: Integer, default: -1

errorString

name: errorString, type: String, persistent: no

selectedType

name: selectedType, type: Integer, default: -1

selectedEntry

name: selectedEntry, type: Integer, default: -1

selectedErrorString

name: selectedErrorString, type: String

numRedundant

name: numRedundant, type: Integer, default: 0

numCollinear

name: numCollinear, type: Integer, default: 0

numOrphan

name: numOrphan, type: Integer, default: 0

numFlatRegion

name: numFlatRegion, type: Integer, default: 0

numBoundary

name: numBoundary, type: Integer, default: 0

numConcave

name: numConcave, type: Integer, default: 0

numNeighborhood

name: numNeighborhood, type: Integer, default: 0, deprecated name: numNeighbourhood

numZeroSize

name: numZeroSize, type: Integer, default: 0

numValence3

name: numValence3, type: Integer, default: 0

numDuplicateNodes

name: numDuplicateNodes, type: Integer, default: 0

numHoles

name: numHoles, type: Integer, default: 0

numInverted

name: numInverted, type: Integer, default: 0

numFatal

name: numFatal, type: Integer, default: 0

numError

name: numError, type: Integer, default: 0

numWarning

name: numWarning, type: Integer, default: 0

numNotice

name: numNotice, type: Integer, default: 0

shouldUpdate

name: shouldUpdate, type: Trigger
