SoTriggerAny¶

InventorModule¶

genre	`InventorEngines`
author	`Silicon Graphics Inc`
package	`MeVisLab/Standard`
definition	inventor.def

Purpose¶

The engine SoTriggerAny accepts up to 10 input triggers and produces one trigger output. The output is triggered whenever one of the inputs is touched.

Windows¶

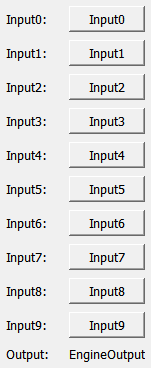

Default Panel¶

../../../Modules/Inventor/InventorBase/mhelp/Images/Screenshots/SoTriggerAny._default.png

Parameter Fields¶

Field Index¶

`Input0`: `Trigger`	`Input8`: `Trigger`
`Input1`: `Trigger`	`Input9`: `Trigger`
`Input2`: `Trigger`	`Output`: `EngineOutput`
`Input3`: `Trigger`
`Input4`: `Trigger`
`Input5`: `Trigger`
`Input6`: `Trigger`
`Input7`: `Trigger`

Visible Fields¶

Input0¶

name: input0, type: Trigger¶: When pressed, the field Output is touched.

Input1¶

name: input1, type: Trigger¶: When pressed, the field Output is touched.

Input2¶

name: input2, type: Trigger¶: When pressed, the field Output is touched.

Input3¶

name: input3, type: Trigger¶: When pressed, the field Output is touched.

Input4¶

name: input4, type: Trigger¶: When pressed, the field Output is touched.

Input5¶

name: input5, type: Trigger¶: When pressed, the field Output is touched.

Input6¶

name: input6, type: Trigger¶: When pressed, the field Output is touched.

Input7¶

name: input7, type: Trigger¶: When pressed, the field Output is touched.

Input8¶

name: input8, type: Trigger¶: When pressed, the field Output is touched.

Input9¶

name: input9, type: Trigger¶: When pressed, the field Output is touched.

Output¶

name: output, type: EngineOutput, persistent: no¶: Triggered when any of the inputs is touched.

This field must be connected to an appropriate Open Inventor field to access or view its value.
