SoTranslate1Dragger

InventorModule

genre	InventorDraggers
author	Silicon Graphics Inc
package	MeVisLab/Standard
definition	inventor.def

Purpose

SoTranslate1Dragger is a simple dragger that translates in one dimension when dragged with the mouse. It moves along the x-axis of its local space, determined by its position in the scene graph. Transformation nodes placed before it will affect both the dragger and the direction of motion.

This node has a translation field that always reflects its position in local space. If you set this field, the dragger will move accordingly. You can also connect fields of other nodes or engines to this one to make them follow the dragger’s motion.

Windows

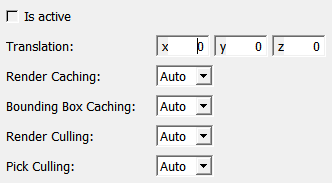

Default Panel

Output Fields

self

name: self, type: SoNode

Parameter Fields

Visible Fields

Is Active

name: isActive, type: Bool, persistent: no

Shows whether the dragger is active.

Translation

name: translation, type: Vector3, default: 0 0 0

Sets and shows the position of the dragger.

Hidden Fields

enable

name: enable, type: Bool, default: TRUE
