SoScaleUniformDragger

InventorModule
genre InventorDraggers
author Silicon Graphics Inc
package MeVisLab/Standard
definition inventor.def

Purpose

SoScaleUniformDragger is a simple dragger that scales uniformly in all 3 dimensions when dragged with the mouse. The local space is determined by its location in the scene graph. Transformation nodes placed before it will affect both the dragger and the plane of motion.

This node has a Scale Factor field which always reflects its size in local space. If you set the field, the dragger will change accordingly. You can also connect fields of other nodes or engines from this one to make them follow the dragger’s motion.

Windows

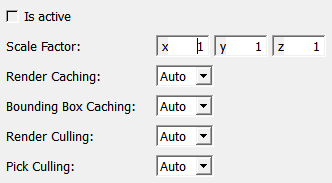

Default Panel

../../../Modules/Inventor/InventorBase/mhelp/Images/Screenshots/SoScaleUniformDragger._default.png

Output Fields

self

name: self, type: SoNode

Parameter Fields

Visible Fields

Is Active

name: isActive, type: Bool, persistent: no

TRUE when mouse is down and dragging, else FALSE.

Scale Factor

name: scaleFactor, type: Vector3, default: 1 1 1

Scale factor affecting the dragger.

Hidden Fields

enable

name: enable, type: Bool, default: TRUE
