SoRotateCylindricalDragger¶

InventorModule¶

genre	`InventorDraggers`
author	`Silicon Graphics Inc`
package	`MeVisLab/Standard`
definition	inventor.def

Purpose¶

SoRotateCylindricalDragger is a simple dragger that rotates about the y axis of its local space. The feel of the rotation is as if you were spinning a cylinder about its axis of rotation. The local space is determined by its location in the scene graph. Transformation nodes placed before it will affect both the dragger and the direction of motion.

This node has a rotation field which always reflects its orientation in local space. If you set the field, the dragger will rotate accordingly. You can also connect fields of other nodes or engines from this one to make them follow the dragger’s orientation.

Windows¶

Default Panel¶

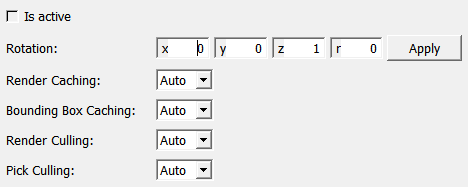

../../../Modules/Inventor/InventorBase/mhelp/Images/Screenshots/SoRotateCylindricalDragger._default.png

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Visible Fields¶

Is Active¶

name: isActive, type: Bool, persistent: no¶: TRUE when mouse is down and dragging, else FALSE.

Rotation¶

name: rotation, type: Rotation, default: 0 0 1 0¶: Orientation of the dragger. Three lines along the x, y, and z axes form the central star shape, which you can drag with the mouse to rotate the dragger.

Hidden Fields¶

enable¶

name: enable, type: Bool, default: TRUE¶
