SoMovieScripter¶
-
InventorModule¶ author MeVis Medical Solutions AGpackage MeVisLab/Standarddll SoMovieScripterdefinition SoMovieScripter.def see also SoExaminerViewerkeywords frames,avi
Purpose¶
The module SoMovieScripter facilitates the generation of movies.
The camera position can be described by predefined rotations, interactively or by a script-based language. The camera position and some variable state are defined at certain keyframes of the movie and all frames between the keyframes are interpolated linearly.
Also some variable values (integer, float, vector, rotation and plane values) can be controlled for the duration of the movie by the same keyframe/interpolation mechanism.
Usage¶
The SoMovieScripter module needs a SoExaminerViewer (or a subclass/equivalent of this). Connect the SoMovieScripter’s camera position (Position) and orientation (Orientation) field to the SoExaminerViewer’s camera position and orientation field and the other way round to interactively change the camera’s orientation and position and to enable the preview feature of the SoMovieScripter module.
To record a movie connect some more fields of the SoMovieScripter to the examiner viewer’s fields. These fields to be connected are not on the common user interface but only on the automatic panel of the SoMovieScripter module. They are: startRecord (connect to viewer’s Recorder:start), stopRecord (connect to viewer’s Recorder:stop), saveRecordedMovie (connect to viewer’s createAvi). The last field to be connected is on the user available panel and it is called Frames / Second. Connect this field to the viewer’s Avi framerate field.
Best to just copy the SoMovieScripter and the SoExaminerViewer from this module’s example network with all their connections.
NOTE: the SoExaminerViewer.autoRedrawWhenRecording option of the viewer (available at the viewer’s advanced tab) must be turned OFF to correctly record the movie (otherwise the number of recorded frames does not always match the number of generated frames).
NOTE: if the SoMovieScripter module is used for automatic movie generation, especially if the script string is set by scripting or simply by loading a saved MeVisLab-network, it is crucial to put the camera to a defined state first. This means that the scene to be recorded should be centered by pressing ViewAll on the according examiner viewer.
Details¶
The SoMovieScripter maintains a list of frames. A sequence of frames makes a movie. In each frame all camera and variable values are stored. Every value of the camera’s parameters or of the variables can be altered independently of each other. The frames itself can be classified into normal frames and key frames. A keyframe is defined by the user and the normal frames that are inbetween the keyframes are interpolated by the module.
Parameter Fields¶
Field Index¶
Angle: Float |
pickCulling: Enum |
Seconds: Float |
appendNumFrames: Integer |
Play (Preview): Trigger |
setupVector: Trigger |
Axis: Vector3 |
Position: Vector3 |
Show preview: Bool |
boundingBoxCaching: Enum |
Record Movie: Trigger |
Snapshot: Trigger |
camLookat: Vector3 |
renderCaching: Enum |
Start Frame: Integer |
camUp: Vector3 |
renderCulling: Enum |
startInterpolation: Trigger |
Current Frame: Integer |
Reset: Trigger |
startRecord: Trigger |
End Frame: Integer |
Rotate XAxis CCW: Trigger |
Status: String |
Focal Distance: Float |
Rotate XAxis CW: Trigger |
Stop: Trigger |
Frames / Second: Float |
Rotate YAxis CCW: Trigger |
stopRecord: Trigger |
Frustum Height: Float |
Rotate YAxis CW: Trigger |
Submit Rotation: Trigger |
inverseRotation: Bool |
Rotate ZAxis CCW: Trigger |
Total: Integer |
Loop preview: Bool |
Rotate ZAxis CW: Trigger |
truncateNumFrames: Integer |
Orientation: Rotation |
saveRecordedMovie: Trigger |
|
Pause: Trigger |
Script: String |

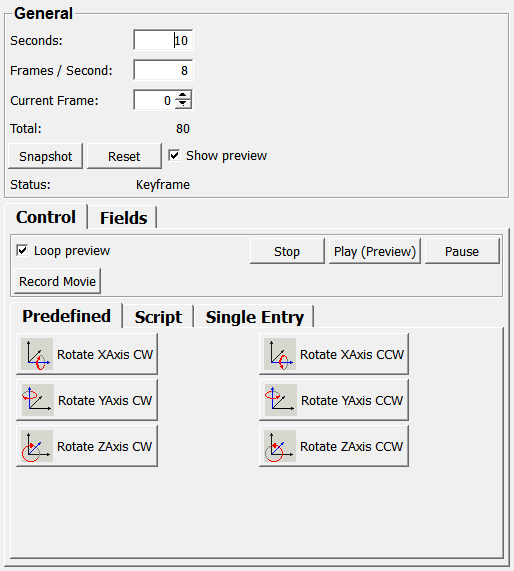

Visible Fields¶
Position¶
-
name:camPos, type:Vector3, default:0 0 -1¶ Sets the position of the camera.
Connect this field to a viewer’s camera field.
Orientation¶
-
name:camOrient, type:Rotation, default:0 0 1 0¶ Sets the camera’s orientation.
Connect this field to a viewer’s orientation field.
Focal Distance¶
-
name:focalDistance, type:Float, default:0¶ Sets the focal distance.
The focal distance is the distance from the camera to the center of rotation.
This value is computed by the module.
Frustum Height¶
-
name:frustumHeight, type:Float, default:0¶ Sets the height of the viewing frustum (or the aspect ratio).
Rotate XAxis CW¶
-
name:rotateXAxisCW, type:Trigger¶ If pressed, the movie script is set to perform a rotation around the x-axis clockwise.
Rotate YAxis CW¶
-
name:rotateYAxisCW, type:Trigger¶ If pressed, the movie script is set to perform a rotation around the y-axis clockwise.
Rotate ZAxis CW¶
-
name:rotateZAxisCW, type:Trigger¶ If pressed, the movie script is set to perform a rotation around the z-axis clockwise.
Rotate XAxis CCW¶
-
name:rotateXAxisCCW, type:Trigger¶ If pressed, the movie script is set to perform a rotation around the x-axis counter-clockwise.
Rotate YAxis CCW¶
-
name:rotateYAxisCCW, type:Trigger¶ If pressed, the movie script is set to perform a rotation around the y-axis counter-clockwise.
Rotate ZAxis CCW¶
-
name:rotateZAxisCCW, type:Trigger¶ If pressed, the movie script is set to perform a rotation around the z-axis counter-clockwise.
Angle¶
-
name:userDefAngle, type:Float, default:1, minimum:-360, maximum:360¶ Sets a user defined angle for a rotation over the whole movie.
Start Frame¶
-
name:userDefStartFrame, type:Integer, default:0¶ Sets a start keyframe to start the user defined rotation.
End Frame¶
-
name:userDefEndFrame, type:Integer, default:79¶ Sets an ending frame for the user defined rotation.
Submit Rotation¶
-
name:userDefSubmit, type:Trigger¶ If pressed, the user defined rotation is computed between the set start and ending frame.
Script¶
-
name:scriptString, type:String¶ Sets the user script for controlling the camera and variable interpolation.
Syntax
All expressions must be enclosed in $(<expression>). To comment a statement, simply delete the dollar sign. Only statements with a leading dollar followed by a opening round bracket will be recognized, and the dollar sign does not have to be the first character in a row.
After that a range statement must be provided. This may have three different forms:
- absolute in frames
- absolute in seconds
- relative in percent.
Each range statement consists of a starting frame (time, percent), a minus sign, an ending frame (time, percent) and a range qualifier that can be empty (frames), the letter ‘s’ (seconds, timebased) or a percent sign ‘%’ (percent based range).
Note: when a frame value or a time value exceeds the minimum or the maximum value of available frames or time, it will be automatically clamped: when less then zero it will be set to zero, when greater then the maximum it will be set to the maximum.
Examples of Range Statement Syntax
Absolute in frames: $(0-29 <command>) or $(2-3 <command>)
Absolute in seconds: $(0-29 s <command>) or $(1.3-2.7s <command>)
Relative in percent: $(0-29 % <command>) or $(3.1-4% <command>)
Commands
The commands available at the time alter the camera (rotation) or some variables.
The angle parameter is always between -360 and 360 (so we measure in degree).
Every variable has eight variations (i.e. for integer variables: int0, int1, int2, int3, int4, int5, int6, int7) and each of them can be used in the script language, but we describe here only the first variation (int0 for integers, flt0 for floats, vec0 for vectors and so on).
Command Description rotateAxis [[x, y, z], angle] Rotates the camera around an axis defined by x, y, z with the specified angle. A full rotation around the Y-axis over the whole movie may be noted as $(0-100% rotateAxis [[0,1,0],360]) rotateXAndBack angle Rotates the camera around the X-axis in the first half of the stated time (or frames..) with the angle and in the other half back. rotateYAndBack angle Same as above, only rotate around another axis (Y) rotateZAndBack angle Same as above, only rotate around another axis (Z)
To conveniently produce a movie which shows a scene from some different angles, try this:
$(0-25% rotateYAndBack 60) $(25-50% rotateYAndBack -60) $(50-75% rotateXAndBack 60) $(75-100% rotateXAndBack -60)
rotateX angle Rotates camera around X-axis with angle degrees. rotateY angle Same as above, only different axis (Y-axis) rotateZ angle Same as above, only different axis (Z-axis) int0 s t Interpolates the int0 variable (integer) from s to t (which must be integers).
Raising this variable from 10 to 95 in the second half of the movie can be expressed like this:
$(51-100% int0 10 95)
Note that the variable int0 has a value of 10 in the first half of the movie when providing only this statement regarding int0.
flt0 s t Interpolates the flt0 variable(float) from s to t (which may be float values). vec0 [ xs, ys, zs][xt, y t, zt] Interpolates the vec0 variable (vector) from a start vector value to a target vector. rot0 [[ xs, ys, zs], as] [[xt, yt, zt], at] Interpolates the rot0 variable (rotation) from a start rotation value to a target value. The rotation is described by an axis (x,y,z) and an angle (a) around this axis. pla0 [[ xs, ys, zs], ds] [[xt, yt, zt], dt] Interpolates the pla0 variable (plane) from a start plane value to a target value. The plane is described by a normal vector (x,y,z ) and a distance (d) from the origin to the plane in normal direction.
Frames / Second¶
-
name:numFramesPerSecond, type:Float, default:8¶ Sets the number of frames per second.
Current Frame¶
-
name:currentFrame, type:Integer, default:0, minimum:0, maximum::field:`numFrames`¶ Shows and sets the current frame.
Snapshot¶
-
name:snapshot, type:Trigger¶ If pressed, the current state of the camera is saved into the current frame as a keyframe configuration.
Show preview¶
-
name:previewOn, type:Bool, default:TRUE¶ If checked, the camera fields are updated as the user steps through the current frames.
Play (Preview)¶
-
name:playMovie, type:Trigger¶ If pressed, the frames are activated consecutively with their camera/variables settings.
Stop¶
-
name:stopMovie, type:Trigger¶ If pressed, the movie stops and the current frame is set to the first one.
Pause¶
-
name:pauseMovie, type:Trigger¶ If pressed, the running movie is paused at the current frame.
A second pressing of the Pause button resumes the movie.
Record Movie¶
-
name:recordMovie, type:Trigger¶ If pressed, the whole movie is run and the viewer is recording the sequence of images as a movie.
Reset¶
-
name:setAllBack, type:Trigger¶ If pressed, all keyframes and normal frames are set back to their initial empty state.
