SoGVRShaderParameterPlane

InventorModule

author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoGVR
definition	SoGVRShaderPipeline.def
see also	SoGVRVolumeRenderer
keywords	pipeline

Purpose

The SoGVRShaderParameterPlane module adds a plane shader parameter (also known as uniform) to the scene. Planes are transformed using the inverse-transposed of the transformation matrix to preserve their direction in non-uniform scaled transforms.

Usage

The direction is specified in either world or eye (aka camera) coordinates. It is available in the GVR shader and can be used in any SoGVRShaderFunction.

The parameter is available in various coordinate systems, which are appended as suffixes to its Name.

Suffix	Coordinate system
_eye	eye/camera coordinates
_world	world coordinates
_voxel	voxel coordinates
_scaledVoxel	scaled voxel coordinates (voxel coordinates multiplied by voxel size)

Windows

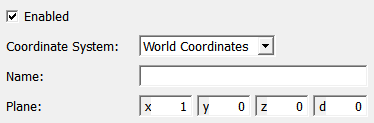

Default Panel

Output Fields

self

name: self, type: SoNode

Place the output into any Open Inventor scene in front of a SoGVRVolumeRenderer.

Parameter Fields

Visible Fields

Enabled

name: enabled, type: Bool, default: TRUE

If checked, the module is enabled.

Name

name: name, type: String

Sets the base name of the parameter in the shader.

It becomes available in the SoGVRShaderFunction via name_eye, name_world, name_voxel, and name_scaledVoxel.

Coordinate System

name: coordinateSystem, type: Enum, default: WorldCoordinates

Defines the source coordinate system in which the Plane is given.

Values:

Title	Name	Description
​World Coordinates	​WorldCoordinates	​World coordinates.
​Eye Coordinates	​EyeCoordinates	​Eye/Camera coordinate system.

Plane

name: plane, type: Plane, default: 1 0 0 0

Sets the plane.
