SoFramebufferSampler3D

InventorModule

genre	Shader
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoShader
definition	SoShader.def
inherits from	SoFramebufferSampler

Purpose

The module SoFramebufferSampler3D provides an OpenGL framebuffer object as a shading language sampler3d.

Windows

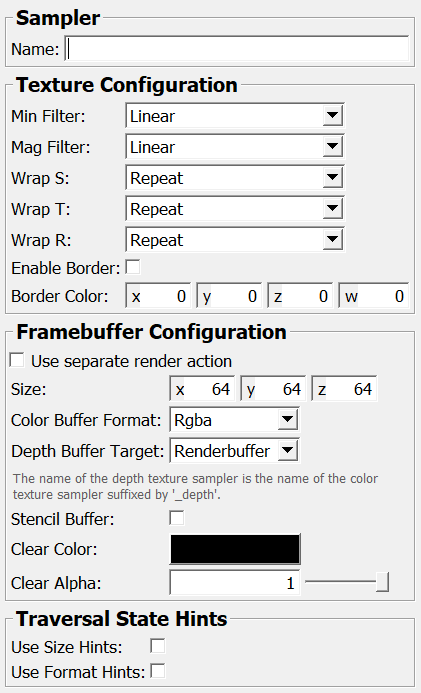

Default Panel

Input Fields

child

name: child, type: SoNode

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

automaticTraversal: Bool	Min Filter: Enum	Use Format Hints: Bool
Border Color: Vector4	Name: String	Use Separate Render Action: Bool
Clear Alpha: Float	needsTextureCoordinates: Bool	Use Size Hints: Bool
Clear Color: Color	pixelScale: Float	use16BitFloat: Bool
Color Buffer Format: Enum	Size: IntVector3	Wrap R: Enum
Depth Buffer Target: Enum	sizeMultiplier: Float	Wrap S: Enum
Enable Border: Bool	Stencil Buffer: Bool	Wrap T: Enum
Mag Filter: Enum	takeSnapshot: Trigger

Visible Fields

Name

name: name, type: String

see SoFramebufferSampler.name

Enable Border

name: enableBorder, type: Bool, default: FALSE

see SoFramebufferSampler.enableBorder

Border Color

name: borderColor, type: Vector4, default: 0 0 0 0

see SoFramebufferSampler.borderColor

Min Filter

name: minFilter, type: Enum, default: LINEAR

see SoFramebufferSampler.minFilter

Mag Filter

name: magFilter, type: Enum, default: LINEAR

see SoFramebufferSampler.magFilter

Wrap S

name: wrapS, type: Enum, default: REPEAT

see SoFramebufferSampler.wrapS

Wrap T

name: wrapT, type: Enum, default: REPEAT

see SoFramebufferSampler.wrapT

Clear Color

name: clearColor, type: Color, default: 0 0 0

see SoFramebufferSampler.clearColor

Clear Alpha

name: clearAlpha, type: Float, default: 1, minimum: 0, maximum: 1

see SoFramebufferSampler.clearAlpha

Color Buffer Format

name: colorBufferFormat, type: Enum, default: RGBA

see SoFramebufferSampler.colorBufferFormat

Depth Buffer Target

name: depthBufferTarget, type: Enum, default: RENDERBUFFER

see SoFramebufferSampler.depthBufferTarget

Stencil Buffer

name: stencilBuffer, type: Bool, default: FALSE

see SoFramebufferSampler.stencilBuffer

Use Size Hints

name: useSizeStateHints, type: Bool, default: FALSE

see SoFramebufferSampler.useSizeStateHints

Use Format Hints

name: useFormatStateHints, type: Bool, default: FALSE

see SoFramebufferSampler.useFormatStateHints

Use Separate Render Action

name: useSeparateRenderAction, type: Bool, default: FALSE

see SoFramebufferSampler.useSeparateRenderAction

Size

name: size, type: IntVector3, default: 64 64 64

see SoFramebufferSampler.size

Wrap R

name: wrapR, type: Enum, default: REPEAT

Defines the wrapping mode in r dimension.

Values:

Title	Name
​Repeat	​REPEAT
​Clamp	​CLAMP
​Clamp To Edge	​CLAMP_TO_EDGE
​Clamp To Border	​CLAMP_TO_BORDER
​Mirrored Repeat	​MIRRORED_REPEAT

Hidden Fields

use16BitFloat

name: use16BitFloat, type: Bool, default: TRUE

see SoFramebufferSampler.use16BitFloat

needsTextureCoordinates

name: needsTextureCoordinates, type: Bool, default: TRUE

see SoFramebufferSampler.needsTextureCoordinates

pixelScale

name: pixelScale, type: Float, default: 1

see SoFramebufferSampler.pixelScale

automaticTraversal

name: automaticTraversal, type: Bool, default: TRUE

see SoFramebufferSampler.automaticTraversal

takeSnapshot

name: takeSnapshot, type: Trigger

see SoFramebufferSampler.takeSnapshot

sizeMultiplier

name: sizeMultiplier, type: Float, default: 1

see SoFramebufferSampler.sizeMultiplier
