SoCreateCubeMapSampler¶

InventorModule¶

author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoImageSamplers`
definition	SoImageSamplers.def
see also	`SoVertexShader`, `SoFragmentShader`, `SoMLSampler2D`
inherits from	`SoFramebufferSampler`
keywords	`cubemap`

Purpose¶

The SoCreateCubeMapSampler module creates a cubemap and renders the given Open Inventor scene into each of the six cubemap faces. The camera is placed at the given World Position, so that the cubemap is valid from the view of that world position. The cube map can either be updated manually or automatically on each rendering.

Usage¶

The rendered cubemap can be used inside of the shader framework, using its Name as the cubemap sampler.

Windows¶

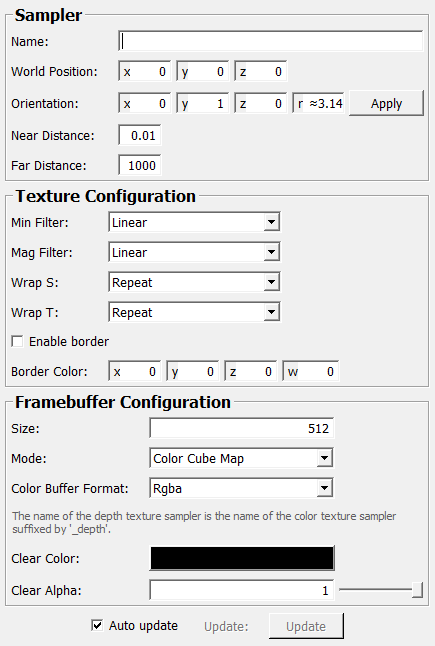

Default Panel¶

../../../Modules/Inventor/SoImageSamplers/mhelp/Images/Screenshots/SoCreateCubeMapSampler._default.png

Input Fields¶

child¶

name: child, type: SoNode¶: The scene to be rendered into the cubemap.

Output Fields¶

self¶

name: self, type: SoNode¶: The generated samplerCube.

Parameter Fields¶

Field Index¶

`Auto Update`: `Bool`	`Min Filter`: `Enum`	`takeSnapshot`: `Trigger`
`automaticTraversal`: `Bool`	`Mode`: `Enum`	`Update`: `Trigger`
`Border Color`: `Vector4`	`Name`: `String`	`Use Separate Render Action`: `Bool`
`Clear Alpha`: `Float`	`Near Distance`: `Float`	`use16BitFloat`: `Bool`
`Clear Color`: `Color`	`needsTextureCoordinates`: `Bool`	`useFormatStateHints`: `Bool`
`Color Buffer Format`: `Enum`	`Orientation`: `Rotation`	`useSizeStateHints`: `Bool`
`depthBufferTarget`: `Enum`	`pixelScale`: `Float`	`World Position`: `Vector3`
`Enable Border`: `Bool`	`Size`: `Integer`	`Wrap S`: `Enum`
`Far Distance`: `Float`	`sizeMultiplier`: `Float`	`Wrap T`: `Enum`
`Mag Filter`: `Enum`	`stencilBuffer`: `Bool`

Visible Fields¶

Name¶

name: name, type: String¶: Sets the sampler name as it appears in shaders.

Enable Border¶

name: enableBorder, type: Bool, default: FALSE¶

see SoFramebufferSampler.enableBorder

Border Color¶

name: borderColor, type: Vector4, default: 0 0 0 0¶

see SoFramebufferSampler.borderColor

Min Filter¶

name: minFilter, type: Enum, default: LINEAR¶

see SoFramebufferSampler.minFilter

Mag Filter¶

name: magFilter, type: Enum, default: LINEAR¶

see SoFramebufferSampler.magFilter

Wrap S¶

name: wrapS, type: Enum, default: REPEAT¶

see SoFramebufferSampler.wrapS

Wrap T¶

name: wrapT, type: Enum, default: REPEAT¶

see SoFramebufferSampler.wrapT

Clear Color¶

name: clearColor, type: Color, default: 0 0 0¶

see SoFramebufferSampler.clearColor

Clear Alpha¶

name: clearAlpha, type: Float, default: 1, minimum: 0, maximum: 1¶

see SoFramebufferSampler.clearAlpha

Color Buffer Format¶

name: colorBufferFormat, type: Enum, default: RGBA¶

see SoFramebufferSampler.colorBufferFormat

Use Separate Render Action¶

name: useSeparateRenderAction, type: Bool, default: FALSE¶

If checked, a separate SoGLRenderAction is used, so that the Open Inventor and GL state above the module does not affect the framebuffer scene rendering.

This means that the camera and any lights above the module will no longer affect the rendering of the scene below the sampler.

Size¶

name: size, type: Integer, default: 512¶: Sets the size of the cubemap.

World Position¶

name: worldPosition, type: Vector3, default: 0 0 0¶: Sets the world position of the camera that is used to render the cubemap.

Orientation¶

name: orientation, type: Rotation, default: 0 1 0 3.14159274101257¶: Sets the main orientation applied to the entire cubemap.

Near Distance¶

name: nearDistance, type: Float, default: 0.0099999998, minimum: 0¶: Sets the near clipping distance of the used cameras.

Far Distance¶

name: farDistance, type: Float, default: 1000, minimum: 0¶: Sets the far clipping distance of the used cameras.

Auto Update¶

name: autoUpdate, type: Bool, default: TRUE¶

If checked, the cubemap is recreated on each re-rendering.

Otherwise, the cubemap is rendered initially and when the Update field is triggered.

Update¶

name: update, type: Trigger¶: When pressed, the cubemap rendering is updated.

Mode¶

name: mode, type: Enum, default: ColorCubeMap¶: Defines the cubemap mode

Values:

Title	Name	Description
Color Cube Map	ColorCubeMap	Create a color cubemap.
Depth Cube Map	DepthCubeMap	Create a depth cubemap.
Color And Depth Cube Map	ColorAndDepthCubeMap	Create a color and a depth cubemap.

Hidden Fields¶

use16BitFloat¶

name: use16BitFloat, type: Bool, default: TRUE¶

see SoFramebufferSampler.use16BitFloat

needsTextureCoordinates¶

name: needsTextureCoordinates, type: Bool, default: TRUE¶

see SoFramebufferSampler.needsTextureCoordinates

depthBufferTarget¶

name: depthBufferTarget, type: Enum, default: RENDERBUFFER¶

see SoFramebufferSampler.depthBufferTarget

stencilBuffer¶

name: stencilBuffer, type: Bool, default: FALSE¶

see SoFramebufferSampler.stencilBuffer

useSizeStateHints¶

name: useSizeStateHints, type: Bool, default: FALSE¶

see SoFramebufferSampler.useSizeStateHints

useFormatStateHints¶

name: useFormatStateHints, type: Bool, default: FALSE¶

see SoFramebufferSampler.useFormatStateHints

pixelScale¶

name: pixelScale, type: Float, default: 1¶

see SoFramebufferSampler.pixelScale

automaticTraversal¶

name: automaticTraversal, type: Bool, default: TRUE¶

see SoFramebufferSampler.automaticTraversal

takeSnapshot¶

name: takeSnapshot, type: Trigger¶

see SoFramebufferSampler.takeSnapshot

sizeMultiplier¶

name: sizeMultiplier, type: Float, default: 1¶

see SoFramebufferSampler.sizeMultiplier
