SoArrow

InventorModule

genre	Visualization
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoUtils
definition	utils.def

Purpose

The module SoArrow renders an arrow.

Usage

See example network.

Windows

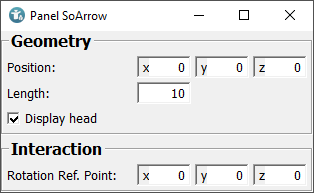

Default Panel

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

boundingBoxCaching: Enum	Rotation Ref. Point: Vector3
Display Head: Bool
Length: Float
minDistance: Float
pickCulling: Enum
Position: Vector3
renderCaching: Enum
renderCulling: Enum

Visible Fields

Position

name: position, type: Vector3, default: 0 0 0

Sets the coordinates of the arrow’s peak (head).

Rotation Ref. Point

name: rotationRef, type: Vector3, default: 0 0 0

Sets the coordinates of the rotation center.

Length

name: length, type: Float, default: 10

Sets the length of the arrow line.

Display Head

name: displayHead, type: Bool, default: TRUE

If checked, the head of the arrow is displayed.

Hidden Fields

renderCaching

name: renderCaching, type: Enum, default: AUTO

Values:

Title	Name
​On	​ON
​Off	​OFF
​Auto	​AUTO

boundingBoxCaching

name: boundingBoxCaching, type: Enum, default: AUTO

Values:

Title	Name
​On	​ON
​Off	​OFF
​Auto	​AUTO

renderCulling

name: renderCulling, type: Enum, default: AUTO

Values:

Title	Name
​On	​ON
​Off	​OFF
​Auto	​AUTO

pickCulling

name: pickCulling, type: Enum, default: AUTO

Values:

Title	Name
​On	​ON
​Off	​OFF
​Auto	​AUTO

minDistance

name: minDistance, type: Float, default: 5
