SoActionLog

InventorModule

genre	Visualization
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoUtils
definition	utils.def
keywords	action, handle, traversal, log, state

Purpose

The module SoActionLog logs all enabled actions passing this node.

Windows

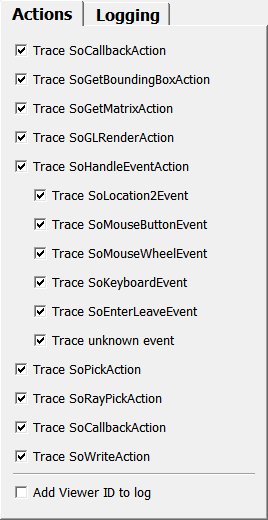

Default Panel

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

Add Viewer ID to log: Bool	Trace SoGetBoundingBoxAction: Bool	Trace SoPickAction: Bool
Clear Log: Trigger	Trace SoGetMatrixAction: Bool	Trace SoRayPickAction: Bool
Json Log: String	Trace SoGLRenderAction: Bool	Trace SoWriteAction: Bool
Log To Console: Bool	Trace SoHandleEventAction: Bool	Trace unknown event: Bool
Log To String: Bool	Trace SoKeyboardEvent: Bool	traceLocation2RefreshEvent: Bool
Trace SoCallbackAction (traceCallback): Bool	Trace SoLocation2Event: Bool
Trace SoCallbackAction (traceSearch): Bool	Trace SoMouseButtonEvent: Bool
Trace SoEnterLeaveEvent: Bool	Trace SoMouseWheelEvent: Bool

Visible Fields

Log To Console

name: logToConsole, type: Bool, default: TRUE

Log To String

name: logToString, type: Bool, default: TRUE

Json Log

name: jsonLog, type: String, persistent: no

Clear Log

name: clearLog, type: Trigger, persistent: no

Trace SoGLRenderAction

name: traceGLRender, type: Bool, default: TRUE

Trace SoCallbackAction (traceCallback)

name: traceCallback, type: Bool, default: TRUE

Trace SoGetBoundingBoxAction

name: traceGetBoundingBox, type: Bool, default: TRUE

Trace SoGetMatrixAction

name: traceGetMatrix, type: Bool, default: TRUE

Trace SoHandleEventAction

name: traceHandleEvent, type: Bool, default: TRUE

Trace SoLocation2Event

name: traceLocation2Event, type: Bool, default: TRUE

Trace SoMouseButtonEvent

name: traceMouseButtonEvent, type: Bool, default: TRUE

Trace SoMouseWheelEvent

name: traceMouseWheelEvent, type: Bool, default: TRUE

Trace SoKeyboardEvent

name: traceKeyboardEvent, type: Bool, default: TRUE

Trace SoEnterLeaveEvent

name: traceEnterLeaveEvent, type: Bool, default: TRUE

Trace unknown event

name: traceUnknownEvent, type: Bool, default: TRUE

Trace SoPickAction

name: tracePick, type: Bool, default: TRUE

Trace SoRayPickAction

name: traceRayPick, type: Bool, default: TRUE

Trace SoCallbackAction (traceSearch)

name: traceSearch, type: Bool, default: TRUE

Trace SoWriteAction

name: traceWrite, type: Bool, default: TRUE

Add Viewer ID to log

name: printViewerId, type: Bool, default: FALSE

Hidden Fields

traceLocation2RefreshEvent

name: traceLocation2RefreshEvent, type: Bool, default: TRUE
