OverwriteVectorComponent

MacroModule

genre	Vector
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
definition	helpers.def
keywords	convert

Purpose

The module OverwriteVectorComponent overwrites single components of a 4D vector.

Windows

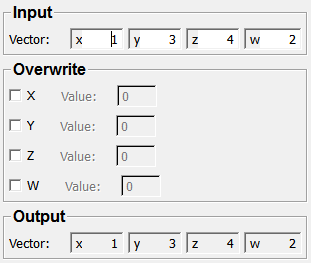

Default Panel

Parameter Fields

Field Index

Value (newXValue): String	Y: Bool
Value (newYValue): String	Z: Bool
Value (newZValue): String
Value (newDValue): String
Vector (inVector): Vector4
Vector (outVector): Vector4
W: Bool
X: Bool

Visible Fields

Vector (inVector)

name: inVector, type: Vector4, default: 1 3 4 2

Sets the input vector.

X

name: overwriteX, type: Bool, default: FALSE

If checked, the x-component of the vector is overwritten.

Value (newXValue)

name: newXValue, type: String, default: 0

Sets the new x-value.

Y

name: overwriteY, type: Bool, default: FALSE

If checked, the y-component of the vector is overwritten.

Value (newYValue)

name: newYValue, type: String, default: 0

Sets the new y-value.

Z

name: overwriteZ, type: Bool, default: FALSE

If checked, the z-component of the vector is overwritten.

Value (newZValue)

name: newZValue, type: String, default: 0

Sets the new z-value.

W

name: overwriteD, type: Bool, default: FALSE

If checked, the w-component of the vector is overwritten.

Value (newDValue)

name: newDValue, type: String, default: 0

Sets the new w-value.

Vector (outVector)

name: outVector, type: Vector4, persistent: no

Shows the resulting output vector.
