MatrixArithmetic

MLModule

author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLCoordUtils1
definition	mlMatrixArithmetic.def
see also	DecomposeMatrix, ComposeMatrix
keywords	mult, div, sum, add, subtract, compose, inverse, determinant, trace

Purpose

The module MatrixArithmetic offers standard arithmetic operations on one or two given homogeneous 4x4 matrices, scalars, and vectors.

Usage

The module requires up to two matrices Matrix A and Matrix B.

Unary operations (inverse, pseudoinverse, transpose, negation) take only one Matrix A, whereas binary operations (add, subtract, multiply) require both matrices.

Scalar and vector operations require corresponding inputs.

Windows

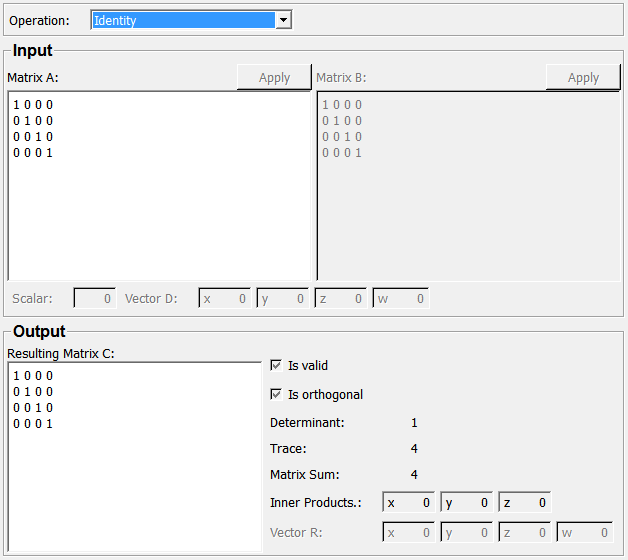

Default Panel

Parameter Fields

Field Index

Determinant: Double	Resulting Matrix C: Matrix
Inner Products.: Vector3	Scalar: Double
Is orthogonal: Bool	Trace: Double
Is valid: Bool	Vector D: Vector4
Matrix A: Matrix	Vector R: Vector4
Matrix B: Matrix
Matrix Sum: Double
Operation: Enum

Visible Fields

Matrix A

name: matrixA, type: Matrix, default: 1 0 0 0, 0 1 0 0, 0 0 1 0, 0 0 0 1

Sets the first input matrix. This is required for unary operations.

Matrix B

name: matrixB, type: Matrix, default: 1 0 0 0, 0 1 0 0, 0 0 1 0, 0 0 0 1

Sets the second input matrix. This is required for binary operations.

Operation

name: operation, type: Enum, default: Identity

Defines the operation.

Values:

Title	Name	Deprecated Name	Description
​Identity	​Identity		​C = A
​Inverse	​Inverse		​C = A^-1
​Moore Penrose Pseudoinverse	​MoorePenrosePseudoinverse		​C = (A^T * A)^-1 * A^T
​Transpose	​Transpose		​C = A^T
​Negation	​Negation		​C = -A
​Add	​Add		​C = A + B
​Multiply	​Multiply		​C = A * B
​Subtract	​Subtract		​C = A - B
​Multiply With Scalar	​MultiplyWithScalar		​C = A * s
​Add Scalar	​AddScalar		​C = A + s
​Multiply With Vector	​MultiplyWithVector		​R = A * D
​Equation System Solver	​EquationSystemSolver	​Equation System Solver	​A * R = D

Resulting Matrix C

name: outputMatrixC, type: Matrix, persistent: no

Shows the resulting matrix.

Determinant

name: outputDeterminant, type: Double, persistent: no

Shows the determinant of the resulting matrix.

Trace

name: outputTrace, type: Double, persistent: no

Shows the trace of the output matrix.

Vector R

name: outputVectorV, type: Vector4, persistent: no

Shows the output vector in the case of using the operation Equation System Solver or Multiply With Vector.

Is valid

name: outputIsValid, type: Bool, persistent: no

Shows whether the result is valid.

Scalar

name: scalarValue, type: Double, default: 0

Sets the input scalar value.

Vector D

name: inputVectorD, type: Vector4, default: 0 0 0 0

Sets the input vector.

Matrix Sum

name: outputSumAbs, type: Double, persistent: no

Shows the output absolute matrix sum.

Is orthogonal

name: outputIsOrthogonal, type: Bool, persistent: no

Shows whether the inner 3x3 matrix of the output matrix is orthogonal.

Inner Products.

name: outputScalarProducts, type: Vector3, persistent: no

Shows the vector of inner products of the output matrix.
