JointDisplay

MLModule
genre Image
author MeVis Medical Solutions AG
package MeVisLab/Standard
dll MLJointHist
definition MLJointHist.def
keywords combine, registration, viewer, match, checkerboard

Purpose

The module JointDisplay generates an image containing parts of two input images.

The output is often used to visualize registration results.

Details

For an example we use simulated T1- and T2-weighted MR images. The images were obtained from the MNI BrainWeb MR simulator.

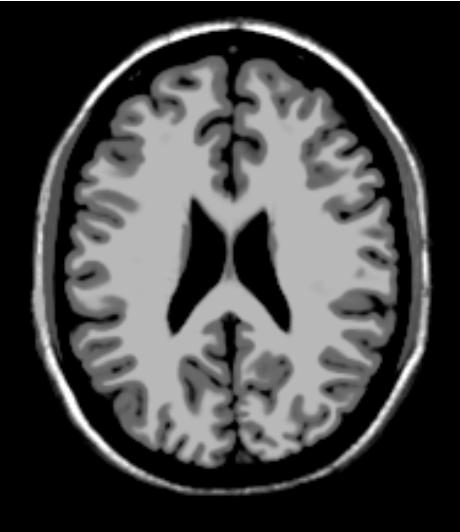

T1-weighted image:

../../../Modules/ML/MLJointHist/mhelp/Images/t1.JPG

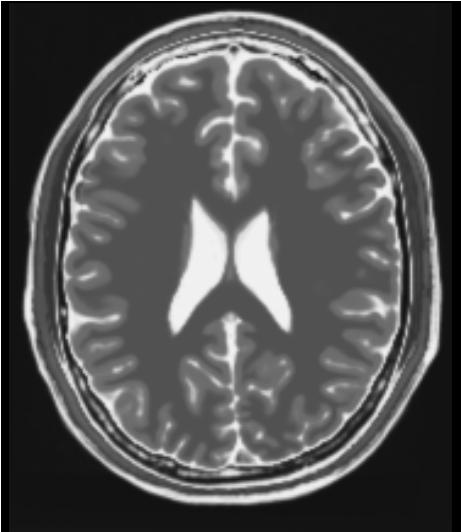

T2-weighted image:

../../../Modules/ML/MLJointHist/mhelp/Images/t2.JPG

Results with a Number of Rectangles = 6.

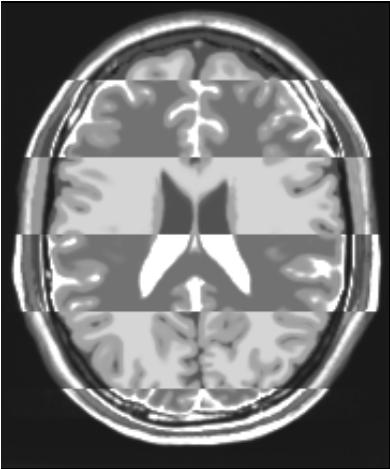

Display Mode = Horizontal:

../../../Modules/ML/MLJointHist/mhelp/Images/horizontal.JPG

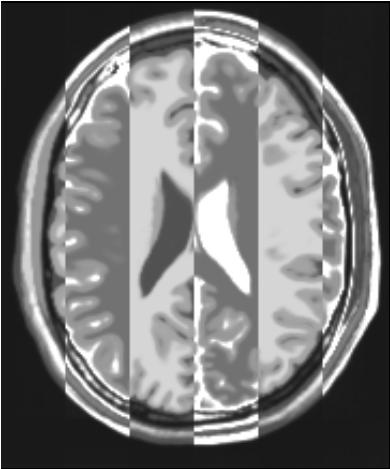

Display Mode = Vertical:

../../../Modules/ML/MLJointHist/mhelp/Images/vertical.JPG

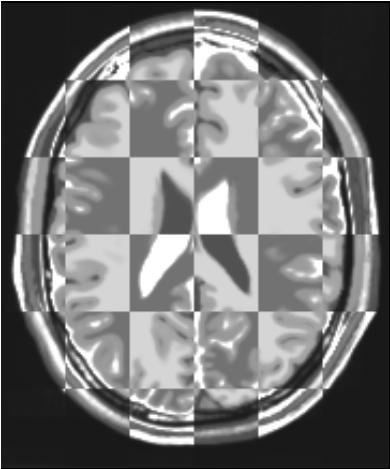

Display Mode = Region:

../../../Modules/ML/MLJointHist/mhelp/Images/region.JPG

Windows

Default Panel

../../../Modules/ML/MLJointHist/mhelp/Images/Screenshots/JointDisplay._default.png

Input Fields

input0

name: input0, type: Image

input1

name: input1, type: Image

Output Fields

output0

name: output0, type: Image

Parameter Fields

Visible Fields

Number of Rectangles

name: numOfRectangles, type: Integer, default: 4, minimum: 1

Sets the number of rectangles in each row and/or column.

Display Mode

name: displayMode, type: Enum, default: Region

Defines the mode of division.

Values:

Title Name Description
Horizontal Horizontal Resulting images are interlaced horizontally.
Vertical Vertical Resulting images are interlaced vertically.
Region Region Resulting images are interlaced in a chessboard pattern.
