EvaluateRelativeLUT

MacroModule

genre	LUT
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
definition	helpers.def
keywords	info, lookup, table

Purpose

The module EvaluateRelativeLUT evaluates a relative LUT at a given position and returns the color at the position.

Usage

Connect a valid LUT and specify a position.

Windows

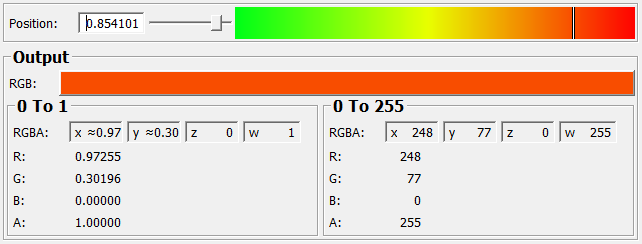

Default Panel

Input Fields

inLUT

name: inLUT, type: LUTFunction(MLBase)

LUT to be evaluated

Parameter Fields

Field Index

A (a0To1): Float	R (r0To1): Float
A (a0To255): Integer	R (r0To255): Integer
B (b0To1): Float	RGB: Color
B (b0To255): Integer	RGBA (color0To1): Vector4
editable: Bool	RGBA (color0To255): Vector4
G (g0To1): Float
G (g0To255): Integer
Position: Double

Visible Fields

Position

name: position, type: Double, default: 0.912181815715751, minimum: 0, maximum: 1

Sets the relative position.

RGB

name: color, type: Color, persistent: no

Shows the color at the relative position.

RGBA (color0To1)

name: color0To1, type: Vector4, persistent: no

Shows the result color as an RGBA vector (range 0-1)

R (r0To1)

name: r0To1, type: Float, persistent: no

Shows the result red channel (range 0-1)

G (g0To1)

name: g0To1, type: Float, persistent: no

Shows the result green channel (range 0-1)

B (b0To1)

name: b0To1, type: Float, persistent: no

Shows the result blue channel (range 0-1)

A (a0To1)

name: a0To1, type: Float, persistent: no

Shows the result alpha channel (range 0-1)

RGBA (color0To255)

name: color0To255, type: Vector4, persistent: no

Shows the result color as RGBA (range 0-255)

R (r0To255)

name: r0To255, type: Integer, persistent: no

Shows the result red channel (range 0-255)

G (g0To255)

name: g0To255, type: Integer, persistent: no

Shows the result green channel (range 0-255)

B (b0To255)

name: b0To255, type: Integer, persistent: no

Shows the result blue channel (range 0-255)

A (a0To255)

name: a0To255, type: Integer, persistent: no

Shows the result alpha channel (range 0-255)

Hidden Fields

editable

name: editable, type: Bool, default: TRUE
