DecomposeArray

MLModule

genre	Coordinate
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLCoordUtils1
definition	MLCoordUtils1.def
see also	ComposeVector3, DecomposeVector3, ComposeVector4, DecomposeVector4, ComposeMatrix, DecomposeMatrix, ComposePlane, VecBoxConvert, MultiFieldInventorTrafo, ComposeArray
keywords	multifield

Purpose

The module DecomposeArray decomposes an array of scalars into single values.

The module can also return a sub-array of the input array.

Usage

Better use Python scripting to decompose an array!

Windows

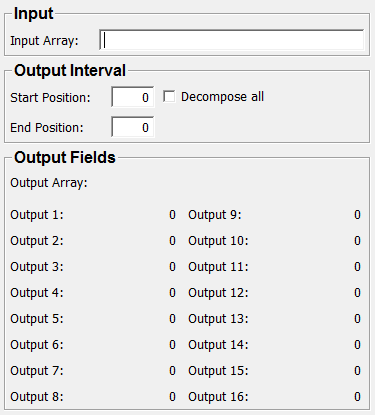

Default Panel

Parameter Fields

Field Index

Decompose all: Bool

End Position: Integer

Input Array: String

Output Array: String

Start Position: Integer

Visible Fields

Input Array

name: inDoubleMField, type: String

Sets the input array consisting of a space-separated list of scalars.

Output Array

name: outDoubleMField, type: String, persistent: no

Shows the output sub-array of the Input Array.

Start Position

name: startPosition, type: Integer, default: 0, minimum: 0

Sets the index for the starting position.

End Position

name: endPosition, type: Integer, default: 0, minimum: 0

Sets the index of the ending position.

Decompose all

name: decomposeAll, type: Bool, default: FALSE

If checked, the whole input array is decomposed to the possible offered output values.
