Counter

MacroModule

genre	Fields
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
definition	helpers.def
see also	KeyCounter, SoCounter
keywords	number, countdown, timer, timecounter, seconds, int, increase, decrease, increment, decrement, add, subtract, loop, cycle

Purpose

The module Counter implements an integer counter field with configurable bounds and increments.

Using trigger fields (buttons), the counter value can be incremented, decremented or reset to a specified start value.

Moreover, the module supports time-triggered counting, e.g., to implement countdowns.

Windows

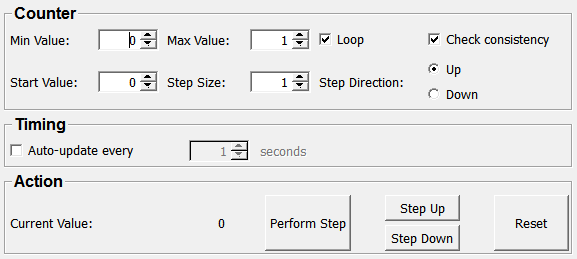

Default Panel

Parameter Fields

Field Index

Auto Step Interval s: Double	Reset: Trigger
Auto-update every: Bool	Start Value: Double
Check Consistency: Bool	Step Direction: Enum
Current Value: Double	Step Down: Trigger
Loop: Bool	Step Size: Double
Max Value: Double	Step Up: Trigger
Min Value: Double
Perform Step: Trigger

Visible Fields

Current Value

name: currentValue, type: Double, default: 0

Shows the current counter value.

Min Value

name: minValue, type: Double, default: 0

Sets the minimum value for the interval to count in.

Max Value

name: maxValue, type: Double, default: 1

Sets the maximum value for the interval to count in.

Start Value

name: startValue, type: Double, default: 0

Sets the start value to count from.

Step Size

name: stepValue, type: Double, default: 1, deprecated name: increment

Sets the step size for a counting step.

Loop

name: loop, type: Bool, default: TRUE, deprecated name: cyclic

If checked, the module continues counting at the minimum value once the maximum value is reached and vice versa.

Otherwise, the module stops.

Check Consistency

name: checkConsistency, type: Bool, default: TRUE

If checked, the Min Value, Max Value, Start Value, and Current Value are kept in a consistent state, ensuring that Min <= Start/Current <= Max always holds.

Auto Step Interval s

name: autoStepInterval_s, type: Double, default: 1, minimum: 0.001, maximum: 1e+06

Sets the number of seconds after which the module automatically performs a counting step.

Auto-update every

name: autoStep, type: Bool, persistent: no

If checked, the module automatically counts after Auto Step Interval s seconds.

Step Direction

name: stepDirection, type: Enum, default: Up

Defines the step direction.

Values:

Title	Name
​Up	​Up
​Down	​Down

Perform Step

name: performStep, type: Trigger

When pressed, a counting step is performed.

Step Up

name: up, type: Trigger, deprecated name: addIncrement

When pressed, a counting step up is performed, independent of the setting in Step Direction.

Step Down

name: down, type: Trigger, deprecated name: subtractIncrement

When pressed, a counting step down is performed, independent of the setting in Step Direction.

Reset

name: reset, type: Trigger, deprecated name: resetCounter

When pressed, the Current Value is reset to the minimum value.
