ComposeRotation

MLModule

genre	Coordinate
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLCoordUtils1
definition	MLCoordUtils1.def
see also	ComposeVector3, DecomposeVector3, ComposeVector4, DecomposeVector4, ComposeMatrix, DecomposeMatrix, ComposePlane, VecBoxConvert
keywords	composition, engine, axis, angle

Purpose

The module ComposeRotation simplifies the specification of rotation parameters if the rotation is composed of multiple rotations about different axes.

The module computes the rotation resulting from the composition of two individual rotations or their inverses. The resulting rotation can be inverted as well.

Usage

Enter the input rotations in the Rotation 1 and Rotation 2 fields. Check the Invert or Invert boxes if you want to invert the input rotations before computing the composition.

Check the Invert Result field if you want to invert the resulting rotation. For changes in a rotation field to become effective, the corresponding Apply button has to be pressed.

Details

A rotation is represented by the rotation axis as a normalized vector in the x, y, and z component of a rotation field, and the rotation angle in radiants in the d component.

Rotations are normalized by mapping the angle to the interval [0, 2*pi) and by normalizing the axis vector.

Windows

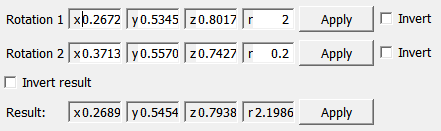

Default Panel

Parameter Fields

Field Index

Invert (invert1): Bool

Invert (invert2): Bool

Invert Result: Bool

Result: Rotation

Rotation 1: Rotation

Rotation 2: Rotation

Visible Fields

Rotation 1

name: rotation1, type: Rotation, default: 0 0 1 0

Sets the first input rotation.

Invert (invert1)

name: invert1, type: Bool, default: FALSE

If checked, the Rotation 1 is inverted internally.

Rotation 2

name: rotation2, type: Rotation, default: 0 0 1 0

Sets the second input rotation.

Invert (invert2)

name: invert2, type: Bool, default: FALSE

If checked, the Rotation 2 is inverted internally.

Result

name: result, type: Rotation, persistent: no

Shows the resulting rotation.

Invert Result

name: invertResult, type: Bool, default: FALSE

If checked, the Result is inverted.
