ColorMatrix¶

MLModule¶

genre	`LUT`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLColor`
definition	mlColor.def
see also	`ColorTable`, `ColorModelConverter`
keywords	`colors`, `c-dimension`, `rgba`, `red`, `green`, `blue`, `alpha`

Purpose¶

The module ColorMatrix changes the colors of an input image by a color transformation matrix. The color model of the output image can be set to Gray, Gray + A, RGB, RGBA

Usage¶

Set the output color model to Gray, Gray + A, RGB, RGBA, and set the elements of the color transformation matrix.

Windows¶

Default Panel¶

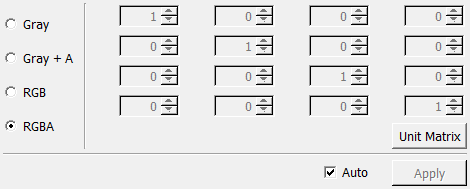

../../../Modules/ML/MLColor/mhelp/Images/Screenshots/ColorMatrix._default.png

Parameter Fields¶

Visible Fields¶

Dimension Select¶

name: dimensionSelect, type: Enum, default: 4D, deprecated name: DimensionSelect¶: Defines the color dimension.

Values:

Title	Name	Description
1d	1D	Gray image.
2d	2D	Gray image with alpha channel.
3d	3D	RGB image.
4d	4D	RGBA image.

Apply¶

name: apply, type: Trigger¶: When pressed, the output image is updated.

Auto¶

name: autoApply, type: Bool, default: TRUE¶: If checked, all changes trigger an update of the output image.

Unit Matrix¶

name: unit, type: Trigger¶: When pressed, the matrix is set back to be the unit matrix.
