CalculateVectorFromVectors

MLModule

genre	Vector
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLCoordUtils1
definition	MLCoordUtils1.def
see also	SoCalculator, CalculateAngle
keywords	cross, product, length

Purpose

The module CalculateVectorFromVectors performs calculations on two given vectors.

Windows

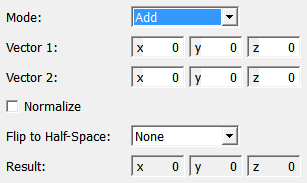

Default Panel

Parameter Fields

Field Index

Flip to Half-Space: Enum

Mode: Enum

Normalize: Bool

Result: Vector3

Vector 1: Vector3

Vector 2: Vector3

Visible Fields

Mode

name: mode, type: Enum, default: Add

Defines the function.

Values:

Title	Name	Deprecated Name	Description
​Add	​Add	​add (a+b)	​Adds the two input vectors.
​Subtract	​Subtract	​subtract (a-b)	​Subtracts the second vector from the first one.
​Cross	​Cross	​cross product (axb)	​Computes the cross product of the input vectors.
​Ortho Project	​OrthoProject	​project a to plane orthogonal to b ((bxa)xb)	​Projects the first vector onto a plane orthogonal to the second vector. r = ((b x a) x b) NOTE that the input vectors are not normalized.

Normalize

name: normalize, type: Bool, default: FALSE

If checked, the Result vector is normalized.

Flip to Half-Space

name: flipToHalfSpace, type: Enum, default: None

Defines one of six coordinate half-spaces available according to the three coordinate axes x, y, and z.

If a given condition is not met, the vector is inverted, i.e., flipped by multiplying each coordinate with (-1).

Values:

Title	Name	Deprecated Name
​None	​None	​none
​Pos X	​PosX	​positive x
​Neg X	​NegX	​negative x
​Pos Y	​PosY	​positive y
​Neg Y	​NegY	​negative y
​Pos Z	​PosZ	​positive z
​Neg Z	​NegZ	​negative z

Vector 1

name: v1, type: Vector3, default: 0 0 0, deprecated name: vectorA

Sets the first input vector.

Vector 2

name: v2, type: Vector3, default: 0 0 0, deprecated name: vectorB

Sets the second input vector.

Result

name: result, type: Vector3, persistent: no, deprecated name: vector

Shows the result vector.
