CalculateGradient

MLModule

genre	Filters
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLFilter1
definition	mlFilter1.def
see also	MorphologicalGradient
keywords	calculation, derivative, vector, field, edge, detection

Purpose

The module CalculateGradient performs edge detection and enhancement by calculating the local gradient in ML images.

Windows

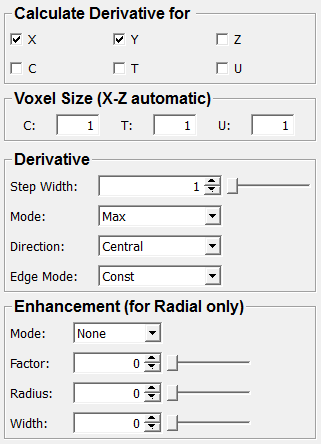

Default Panel

Input Fields

input0

name: input0, type: Image

The image for gradient calculation.

inputXMarkerList

name: inputXMarkerList, type: XMarkerList(MLBase)

The first marker of the input marker list can be used as a center position for radial gradient computation.

For accessing this object via scripting, see the Scripting Reference: MLXMarkerListWrapper.

Output Fields

output0

name: output0, type: Image

Computed gradient image.

Parameter Fields

Field Index

C (c_Derivative): Bool	status: String	Y: Bool
C (c_VoxelSize): Float	Step Width: Integer	Z: Bool
Direction: Enum	T (t_Derivative): Bool
Edge Mode: Enum	T (t_VoxelSize): Float
Factor: Float	U (u_Derivative): Bool
Mode (gradientMode): Enum	U (u_VoxelSize): Float
Mode (enhanceMode): Enum	Width: Float
Radius: Float	X: Bool

Visible Fields

X

name: x_Derivative, type: Bool, default: TRUE, deprecated name: X\_Derivative

If checked, the gradient in the x direction is computed.

Y

name: y_Derivative, type: Bool, default: TRUE, deprecated name: Y\_Derivative

If checked, the gradient in the y direction is computed.

Z

name: z_Derivative, type: Bool, default: FALSE, deprecated name: Z\_Derivative

If checked, the gradient in the z direction is computed.

C (c_Derivative)

name: c_Derivative, type: Bool, default: FALSE, deprecated name: C\_Derivative

If checked, the gradient in the c direction is computed.

T (t_Derivative)

name: t_Derivative, type: Bool, default: FALSE, deprecated name: T\_Derivative

If checked, the gradient in the t direction is computed.

U (u_Derivative)

name: u_Derivative, type: Bool, default: FALSE, deprecated name: U\_Derivative

If checked, the gradient in the u direction is computed.

C (c_VoxelSize)

name: c_VoxelSize, type: Float, default: 1, deprecated name: C\_VoxelSize

Sets the voxel size for gradient computation in the c direction.

T (t_VoxelSize)

name: t_VoxelSize, type: Float, default: 1, deprecated name: T\_VoxelSize

Sets the voxel size for gradient computation in the t direction.

U (u_VoxelSize)

name: u_VoxelSize, type: Float, default: 1, deprecated name: U\_VoxelSize

Sets the voxel size for gradient computation in the u direction.

Mode (gradientMode)

name: gradientMode, type: Enum, default: Max, deprecated name: GradientMode

Defines the gradient computation mode.

Values:

Title	Name	Description
​Max	​Max	​Writes the maximum gradient value to the output image.
​Norm	​Norm	​Writes the normalized gradient value into the output image.
​Radial	​Radial	​Writes a radial gradient value into the output image. The radial gradient is computed from the image center or from the position of the first marker if a marker list is attached.
​2nd Deriv Max	​2ndDeriv_Max	​Writes the maximum value of the second derivative gradient into the output image.
​2nd Deriv Norm	​2ndDeriv_Norm	​Writes the normalized value of the second derivative gradient into the output image.
​2nd Deriv Radial	​2ndDeriv_Radial	​Writes a second derivative radial gradient value into the output image. The radial gradient is computed from the image center or from the position of the first marker if a marker list is attached.
​Curvature	​Curvature	​Writes a curvature value into the output image.
​Separate	​Separate	​Writes the separate gradient values for x, y, and z into the u dimension of the output image.
​Abs Separate	​AbsSeparate	​Writes the absolute separate gradient values for x, y, and z into the u dimension of the output image.

Direction

name: gradientType, type: Enum, default: Central

Defines the type of gradient computation.

Values:

Title	Name
​Central	​Central
​Inferior	​Inferior
​Superior	​Superior

Edge Mode

name: edgeMode, type: Enum, default: Const, deprecated name: EdgeMode

Defines the edge mode for gradient computation.

Values:

Title	Name
​Const	​Const
​Linear	​Linear

Step Width

name: stepWidth, type: Integer, default: 1, minimum: 1, maximum: 10, deprecated name: StepWidth

Sets the step width or kernel size in x, y, and z directions for gradient computation. Larger step widths result in smaller gradient values.

Mode (enhanceMode)

name: enhanceMode, type: Enum, default: None, deprecated name: EnhanceMode

Defines the enhancement mode for gradient computation.

Values:

Title	Name
​None	​None
​Triangular	​Triangular
​Gauss	​Gauss

Radius

name: estRadius, type: Float, default: 0, minimum: 0, maximum: 100, deprecated name: EstRadius

Sets a radius for the Mode.

Factor

name: enhanceFactor, type: Float, default: 0, minimum: 0, maximum: 10, deprecated name: EnhanceFactor

Sets a factor for the Mode.

Width

name: enhanceWidth, type: Float, default: 0, minimum: 0, maximum: 100, deprecated name: EnhanceWidth

Sets a width for the Mode.

Hidden Fields

status

name: status, type: String, deprecated name: Status
