Chapter 22. Search in Network

Searches for some named item in the current network. Optionally, the search is applied recursively so that it also searches in macro modules.

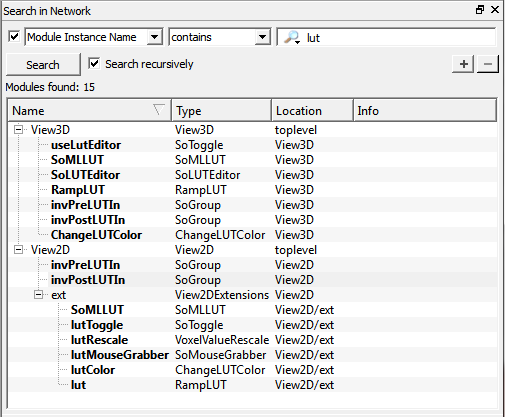

Figure 22.1. Scripting Editor

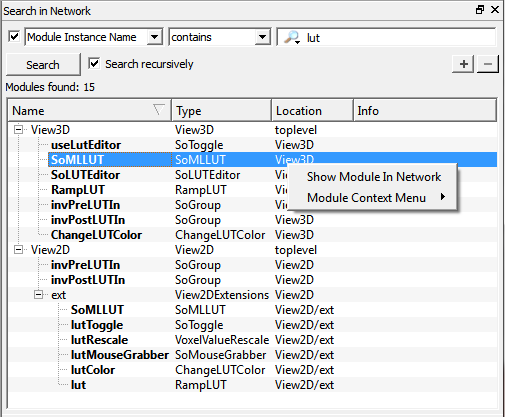

A listed item has a context menu. Its first entry is an option to show the item in the network. If chosen, the network is opened, the module is highlighted, and the highlighted module is centered. Alternatively, a listed item can just be double-clicked to highlight and show it.

Figure 22.2. Scripting Editor

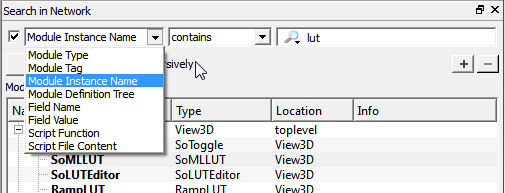

This search can search for different kinds of items. For some of the options, additional choices are available.

Module Type: searches in the modules' type strings
Module Tag: searches in the modules' meta tags
Module Instance Name: searches in the modules' instance name
Module Definition Tree: searches in the modules' definition tree for a tag with the given value
Field Name: searches in the fields' names
Field Value: searches in the fields' values
Script Function: searches in the (Python) scripting functions
Script File Content: searches in the module's GUI definition files

Figure 22.3. Scripting Editor
