You can find information about the voxel and world matrix in the image properties on the Output Inspector View.

The easiest (ideal) image is when the world and the voxel matrix correspond, so that one voxel is one world unit, and the world matrix is coronal (not tilted in any way). In case of an image taken in the sagittal position, voxel sizes may be different and the world matrix may be tilted.

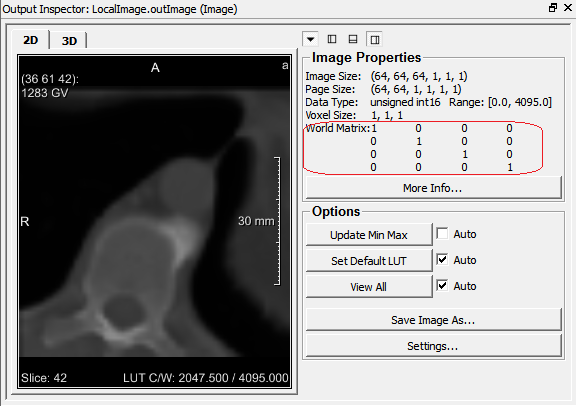

Figure 12.6. Image Properties for an Ideal Image

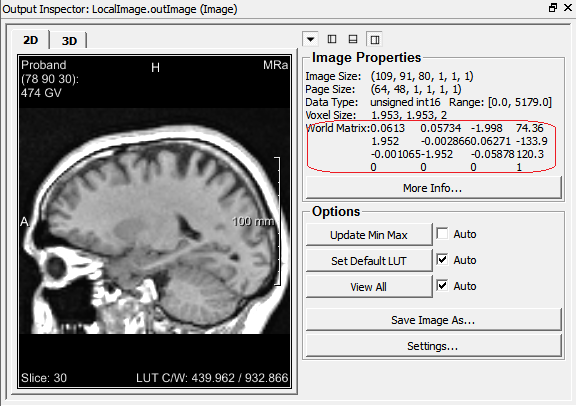

Figure 12.7. Image Properties for a Sagittal Image

	Note
	In DICOM, the voxel thickness does not necessarily correspond to the distance between slices. In MeVisLab however, the calculated voxels close the slice distance.

	Tip
	Also see the Info module and its help for further information on the displayed data, especially the calculation of the slice thickness z.

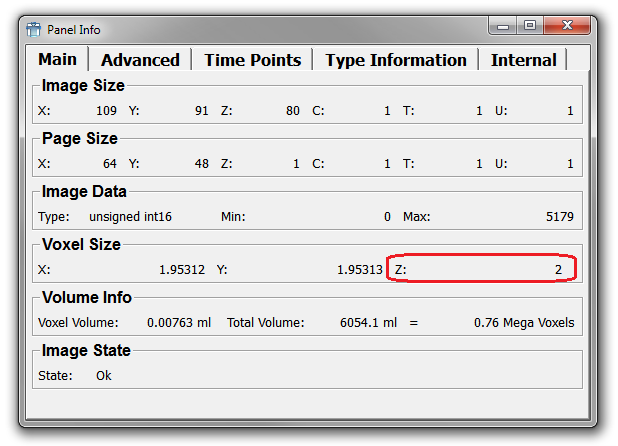

Figure 12.8. Image Properties in the Info Module
