SimpleRawImageLoadExample¶

MLModule¶

author	`MeVis Medical Solutions AG`
package	`MeVisLab/Examples`
dll	`MLSimpleRawImageLoadExample`
definition	MLSimpleRawImageLoadExample.def

Purpose¶

This module demonstrates how to write a simple image file loader.

Usage¶

Give filename, image size and data type, then press Load.

Details¶

This module does not support color images, and only scalar voxel values. You can also not specify any byte offset. There is also no automatic loading.

Tips¶

While you change any input parameter while an file is open, the file will be closed.

Windows¶

Default Panel¶

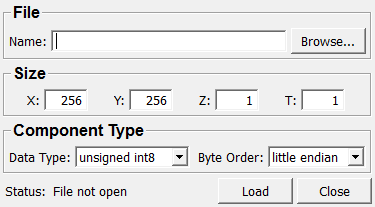

../../../Modules/ML/MLSimpleRawImageLoadExample/mhelp/Images/Screenshots/SimpleRawImageLoadExample._default.png

Output Fields¶

output0¶

name: output0, type: Image¶: The loaded image after Load has been pressed.

Parameter Fields¶

Field Index¶

`Byte Order`: `Enum`	`Y`: `Integer`
`Close`: `Trigger`	`Z`: `Integer`
`Data Type`: `Enum`
`Load`: `Trigger`
`Name`: `String`
`Status`: `String`
`T`: `Integer`
`X`: `Integer`

Visible Fields¶

Name¶

name: filename, type: String¶: The filename of a file with raw (i.e., unformatted) binary image data.

Load¶

name: load, type: Trigger¶: Trigger loading of the image.

Close¶

name: close, type: Trigger¶: Close the image again.

X¶

name: sizeX, type: Integer, default: 256¶: Size of the image in X direction.

Y¶

name: sizeY, type: Integer, default: 256¶: Size of the image in Y direction.

Z¶

name: sizeZ, type: Integer, default: 1¶: Size of the image in Z direction.

T¶

name: sizeT, type: Integer, default: 1¶: Size of the image in T (time) direction.

Data Type¶

name: dataType, type: Enum, default: unsigned int8¶: Data type of the voxel values.

Values:

Title	Name
unsigned int8	unsigned int8
int8	int8
unsigned int16	unsigned int16
int16	int16
unsigned int32	unsigned int32
int32	int32
unsigned int64	unsigned int64
int64	int64
float	float
double	double

Byte Order¶

name: byteOrder, type: Enum, default: little endian¶: Byte order of the voxel values.
