ProjectMarkersToPlane

MLModule

author	Lennart Tautz
package	FMEwork/ReleaseMeVis
dll	MarkerPlaneAlgorithms
definition	MarkerPlaneAlgorithms.def

Purpose

This module projects markers to a plane.

Usage

Connect a marker list (inMarkerList), set a mode (Projection Mode) and possibly a plane (Plane), and press Update.

Windows

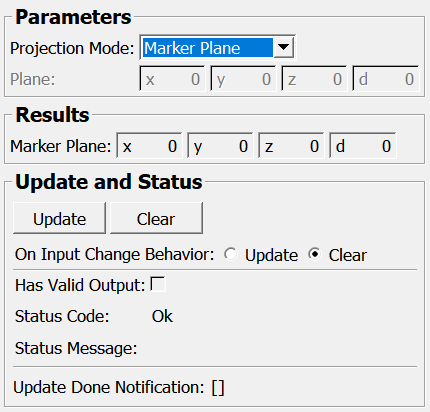

Default Panel

Input Fields

inMarkerList

name: inMarkerList, type: MLBase

A marker list.

Output Fields

outMarkerList

name: outMarkerList, type: MLBase

A marker list where all input markers have been projected to a plane as set by the parameters.

Parameter Fields

Field Index

[]: Trigger	Status Code: Enum
Clear: Trigger	Status Message: String
doNotClearOnFailedUpdate: Bool	Update: Trigger
Has Valid Output: Bool
Marker Plane: Plane
On Input Change Behavior: Enum
Plane: Plane
Projection Mode: Enum

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldAutoUpdate,shouldUpdateAutomatically

Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
​Update	​Update	​TRUE
​Clear	​Clear	​FALSE

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
​Ok	​Ok
​Invalid input object	​Invalid input object
​Invalid input parameter	​Invalid input parameter
​Internal error	​Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Projection Mode

name: inProjectionMode, type: Enum, default: MarkerPlane

Marker projection mode

Values:

Title	Name	Description
​Marker Plane	​MarkerPlane	​The input markers are projected to the plane defined by the shortest Eigenvector of the markers’ PCA.
​Plane Parameter	​PlaneParameter	​The input markers are projected to the plane given in Plane.

Plane

name: inPlane, type: Plane, default: 0 0 0 0

Plane to project the markers to.

Marker Plane

name: outPlane, type: Plane, persistent: no

The marker plane, as determined by PCA.

Hidden Fields

doNotClearOnFailedUpdate

name: doNotClearOnFailedUpdate, type: Bool, persistent: no

Prevents automated clear after update failed. This does not affect status fields. It enables the developer to analyze module’s state after failure.
