CSOFlipNormal¶

MLModule¶

genre	`CSOModificator`
author	`Johann Drexl`
package	`FMEwork/ReleaseMeVis`
dll	`MLCSOMiscModules`
definition	MLCSOMiscModules.def

Purpose¶

The module CSOFlipNormal flips the normals of input CSOs by reversing the order of seed- and path points.

Details¶

Note that in case of Point Mode SEED_POINT, the module performs a linear interpolation of path points between all consecutive seed points. This means that for example the result of a flipped spline CSO is a polygon CSO.

Windows¶

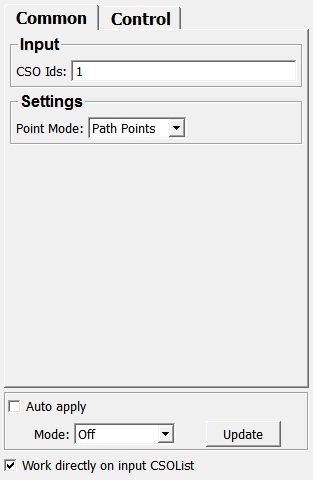

Default Panel¶

../../../Modules/ML/MLCSOMiscModules/mhelp/Images/Screenshots/CSOFlipNormal._default.png

Input Fields¶

inCSOList¶

name: inCSOList, type: MLBase¶

Output Fields¶

outCSOList¶

name: outCSOList, type: MLBase¶

Parameter Fields¶

Field Index¶

`addCSOToGroupMode`: `Enum`	`useUndoRedo`: `Bool`
`addCSOToGroupWithId`: `Integer`
`addCSOToGroupWithLabel`: `String`
`done`: `Trigger`
`emptyGroupBeforeGeneration`: `Bool`
`id`: `Integer`
`isProcessing`: `Bool`
`Point Mode`: `Enum`

Visible Fields¶

Point Mode¶

name: pointMode, type: Enum, default: PathPoints¶: Defines the set of points this module works primarily on.

Values:

Title	Name	Description
Seed Points	SeedPoints	Reverses the order of seed points and interpolates the path point lists in between linearly.
Path Points	PathPoints	Reverses the order of seed- and path points as they are without applying any interpolation.

Hidden Fields¶

isProcessing¶

name: isProcessing, type: Bool, default: FALSE¶

done¶

name: done, type: Trigger¶

emptyGroupBeforeGeneration¶

name: emptyGroupBeforeGeneration, type: Bool, default: FALSE¶

addCSOToGroupMode¶

name: addCSOToGroupMode, type: Enum, default: AddToGroupByLabel¶
