LoadFibers

MLModule

genre	FiberTracking
author	Jan Klein
package	FMEwork/Release
dll	MLFiberUtils
definition	MLFiberUtils.def
keywords	DTI, tensor, load, fiber, file

Purpose

The module LoadFibers loads a fiber set or a fiber set container.

Usage

Select file name and press load button.

Tips

If the files with the saved fiber set or fiber set container ends with .fbr, it can simply be dropped onto a network to instantiate a LoadFibers module with the correct path set.

Windows

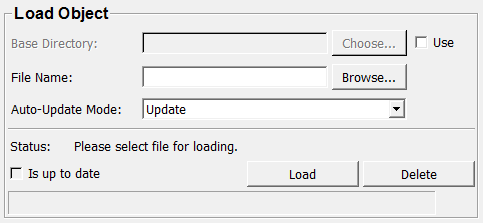

Default Panel

Output Fields

outFibers

name: outFibers, type: MLBase

loaded FiberSet or FiberSetContainer

Parameter Fields

Field Index

&Delete: Trigger	Status: String
&Load: Trigger	Use: Bool
Auto-Update Mode: Enum
Base Directory: String
File Name: String
Is up to date: Bool
nodeName: String
prog: Float

Visible Fields

&Delete

name: delete, type: Trigger, deprecated name: deleteObject

If pressed, the output fiber set is deleted.

&Load

name: load, type: Trigger, deprecated name: loadObject

If pressed, the fiber set at the given path is loaded.

Auto-Update Mode

name: autoUpdate, type: Enum, default: AutoUpdate, deprecated name: autoLoadMode,autoLoad

Defines the update behavior of the module on input change.

Values:

Title	Name	Deprecated Name
​Keep	​Off	​AutoUpdateModeDoNothing,FALSE
​Delete	​AutoClear	​AutoUpdateModeAutoClear
​Update	​AutoUpdate	​AutoUpdateModeAutoUpdate,TRUE

Status

name: status, type: String, default: Please select file for loading., deprecated name: currStatus

Shows status information about the module.

File Name

name: filename, type: String, deprecated name: fileName

Sets the file name of the file to be loaded.

Use

name: useBaseDir, type: Bool, default: FALSE

If checked, a Base Directory is used to generated the load path.

Base Directory

name: baseDir, type: String

Sets a base directory from which the file is loaded.

Is up to date

name: upToDate, type: Bool, default: FALSE

Shows whether the loaded file is up-to-date.

Hidden Fields

nodeName

name: nodeName, type: String

prog

name: prog, type: Float, default: 0
