FiberInfo

MLModule

genre	FiberTracking
authors	Anna Hallerbach, Jan Klein
package	FMEwork/Release
dll	MLFiberUtils
definition	MLFiberUtils.def
see also	DTIInfo
keywords	DTI, fiber, min, max, length, number

Purpose

The module this shows information about fibers, fiber sets, and fiber set containers.

Windows

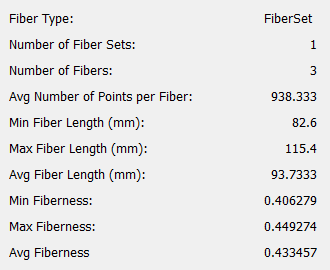

Default Panel

Input Fields

inputFiberSet

name: inputFiberSet, type: MLBase

Parameter Fields

Field Index

Avg Fiber Length (mm): Float	Number of Fiber Sets: Integer
Avg Fiberness: Float	Number of Fibers: Integer
Avg Number of Points per Fiber: Float
Fiber Type: String
Max Fiber Length (mm): Float
Max Fiberness: Float
Min Fiber Length (mm): Float
Min Fiberness: Float

Visible Fields

Number of Fibers

name: inFiberSetSize, type: Integer, persistent: no

Shows the number of fibers.

Number of Fiber Sets

name: numberFiberSets, type: Integer, persistent: no

Shows the number of fiber sets.

Avg Number of Points per Fiber

name: avgNumberFiberPoints, type: Float, persistent: no

Shows the average number of points per fiber.

Min Fiber Length (mm)

name: minFiberLength, type: Float, persistent: no

Shows the minimum length of all fibers.

Max Fiber Length (mm)

name: maxFiberLength, type: Float, persistent: no

Shows the maximum length of all fibers.

Avg Fiber Length (mm)

name: avgFiberLength, type: Float, persistent: no

Shows the average length of all fibers.

Min Fiberness

name: minFiberness, type: Float, persistent: no

Shows the minimum fiberness value of all fibers.

Max Fiberness

name: maxFiberness, type: Float, persistent: no

Shows the maximum fiberness value of all fibers.

Avg Fiberness

name: avgFiberness, type: Float, persistent: no

Shows the average fiberness value of all fibers.

Fiber Type

name: fiberType, type: String, persistent: no

Shows the type of the attached object (fiber/fiber set/fiber set container).
