TranslateXMarkers

MLModule

author	Lennart Tautz
package	FMEstable/ReleaseMeVis
dll	MLMarkerInfrastructure
definition	mlTranslateXMarkers.def
keywords	translate, move, add, subtract, marker, list, offset, vector

Purpose

This module translates all XMarker positions in an XMarkerList.

Usage

Connect an XMarkerList, enter a translation vector and press Update.

Windows

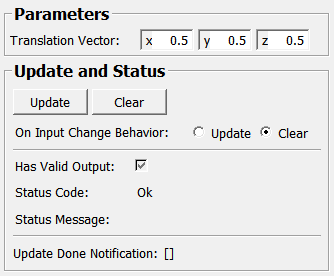

Default Panel

Input Fields

inMarkerList

name: inMarkerList, type: MLBase

Input XMarkerList.

Output Fields

outMarkerList

name: outMarkerList, type: MLBase

Copy of the input XMarkerList with translated XMarker positions.

Parameter Fields

Field Index

[]: Trigger	Update: Trigger
Clear: Trigger
doNotClearOnFailedUpdate: Bool
Has Valid Output: Bool
On Input Change Behavior: Enum
Status Code: Enum
Status Message: String
Translation Vector: Vector3

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldAutoUpdate,shouldUpdateAutomatically

Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
​Update	​Update	​TRUE
​Clear	​Clear	​FALSE

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
​Ok	​Ok
​Invalid input object	​Invalid input object
​Invalid input parameter	​Invalid input parameter
​Internal error	​Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Translation Vector

name: inTranslationVector, type: Vector3, default: 0 0 0

Translation vector to be added to all XMarkers in the input list.

Hidden Fields

doNotClearOnFailedUpdate

name: doNotClearOnFailedUpdate, type: Bool, persistent: no

Prevents automated clear after update failed. This does not affect status fields. It enables the developer to analyze module’s state after failure.
