SoActionFilter

InventorModule

genre	InventorMain
author	Christian Schumann
package	FMEstable/ReleaseMeVis
dll	SoFilter
definition	SoFilter.def
see also	SoNodeFilter, SoDrawStyle, SoPickStyle
keywords	Search, Filter

Purpose

Allows to select which actions are applied to the child graph

Usage

Connect the child graphs and select which actions to forward.

Windows

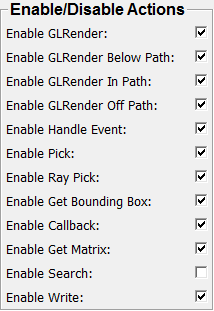

Default Panel

Input Fields

child

name: child, type: SoNode

Child graph(s) to which actions are forwarded

Output Fields

self

name: self, type: SoNode

Connection to graph which send the actions.

Parameter Fields

Field Index

Enable Callback: Bool	Enable Search: Bool
Enable Get Bounding Box: Bool	Enable Write: Bool
Enable Get Matrix: Bool
Enable GLRender: Bool
Enable GLRender Below Path: Bool
Enable Handle Event: Bool
Enable Pick: Bool
Enable Ray Pick: Bool

Visible Fields

Enable GLRender

name: enableGLRender, type: Bool, default: TRUE

Define if GLRender action is forwarded

Enable GLRender Below Path

name: enableGLRenderBelowPath, type: Bool, default: TRUE

Define if enableGLRenderBelowPath action is forwarded

Enable Callback

name: enableCallback, type: Bool, default: TRUE

Define if Callback action is forwarded

Enable Get Bounding Box

name: enableGetBoundingBox, type: Bool, default: TRUE

Define if GetBoundingBox action is forwarded

Enable Get Matrix

name: enableGetMatrix, type: Bool, default: TRUE

Define if GetMatrix action is forwarded

Enable Handle Event

name: enableHandleEvent, type: Bool, default: TRUE

Define if HandleEvent action is forwarded

Enable Pick

name: enablePick, type: Bool, default: TRUE

Define if Pick action is forwarded

Enable Ray Pick

name: enableRayPick, type: Bool, default: TRUE

Define if RayPick action is forwarded

Enable Search

name: enableSearch, type: Bool, default: TRUE

Define if Search action is forwarded

Enable Write

name: enableWrite, type: Bool, default: TRUE

Define if Write action is forwarded
