SeverityChannelLoggingSink

MLModule

genre	InfoManagement
author	Daniel Romberg
package	FMEstable/ReleaseMeVis
dll	MLSeverityChannelLogging
definition	MLSeverityChannelLogging.def
see also	SeverityChannelLoggingTester
keywords	sink, log, output, error

Windows

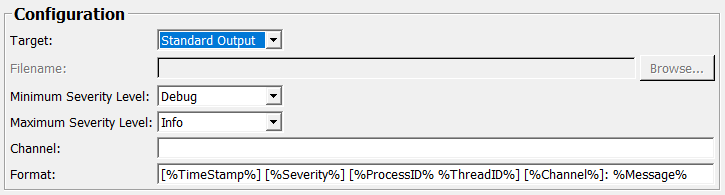

Default Panel

Parameter Fields

Field Index

Channel: String

Filename: String

Format: String

Maximum Severity Level: Enum

Minimum Severity Level: Enum

Target: Enum

Visible Fields

Minimum Severity Level

name: minimumSeverityLevel, type: Enum, default: Debug

Values:

Title	Name
​Debug	​Debug
​Info	​Info
​Warning	​Warning
​Error	​Error
​Critical	​Critical

Maximum Severity Level

name: maximumSeverityLevel, type: Enum, default: Info

Values:

Title	Name
​Debug	​Debug
​Info	​Info
​Warning	​Warning
​Error	​Error
​Critical	​Critical

Channel

name: channel, type: String

Format

name: format, type: String, default: [%TimeStamp%] [%Severity%] [%ProcessID% %ThreadID%] [%Channel%]: %Message%

Target

name: target, type: Enum, default: StandardOutput

Values:

Title	Name
​Standard Output	​StandardOutput
​Standard Error	​StandardError
​Standard Log	​StandardLog
​File	​File

Filename

name: filename, type: String
