SetMarkerProperties

MLModule

author	Lennart Tautz
package	FMEstable/ReleaseMeVis
dll	MLMarkerInfrastructure
definition	MLMarkerInfrastructure.def
keywords	type

Purpose

This module changes marker properties in an XMarkerList.

Usage

Connect an XMarkerList, choose the properties to be modified and press Update.

Windows

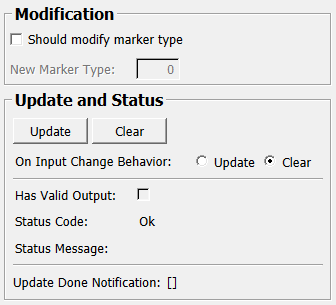

Default Panel

Input Fields

inMarkerList

name: inMarkerList, type: MLBase

The original marker list.

Output Fields

outMarkerList

name: outMarkerList, type: MLBase

The modified marker list.

Parameter Fields

Field Index

[]: Trigger	Update: Trigger
Clear: Trigger
Has Valid Output: Bool
New Marker Type: Integer
On Input Change Behavior: Enum
Should Modify Marker Type: Bool
Status Code: Enum
Status Message: String

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldUpdateAutomatically,shouldAutoUpdate

Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
​Update	​Update	​TRUE
​Clear	​Clear	​FALSE

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
​Ok	​Ok
​Invalid input object	​Invalid input object
​Invalid input parameter	​Invalid input parameter
​Internal error	​Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Should Modify Marker Type

name: shouldModifyMarkerType, type: Bool, default: FALSE

Check to change the type of all markers in the list.

New Marker Type

name: inNewMarkerType, type: Integer, default: 0

New marker type.
