RigidTransformationFromMarkerLists

MLModule

genre	Registration
author	Torben Paetz
package	FMEstable/ReleaseMeVis
dll	MLRigidTransformationFromMarkerLists
definition	MLRigidTransformationFromMarkerLists.def
see also	ICP
keywords	rigid, transformation, registration, landmark, SVD

Purpose

Calculates the least squares rigid transformation matrix from reference to template markers via a singular value decomposition of the covariance matrix of the marker positions.

Usage

Connect two marker list of the same size representing corresponding marker positions in both coordinate systems. The modules output is the transformation matrix from the reference to the template coordinate system.

Windows

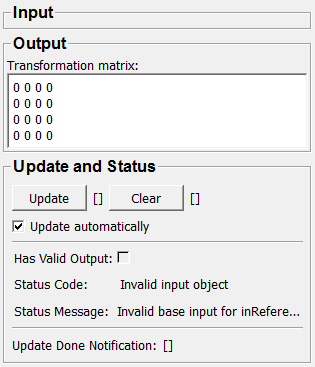

Default Panel

Input Fields

inReferenceMarker

name: inReferenceMarker, type: MLBase

List of reference marker positions

inTemplateMarker

name: inTemplateMarker, type: MLBase

List of template marker positions

Parameter Fields

Field Index

[]: Trigger	Update: Trigger
Clear: Trigger
doNotClearOnFailedUpdate: Bool
Has Valid Output: Bool
On Input Change Behavior: Enum
Status Code: Enum
Status Message: String
Transformation matrix: Matrix

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldAutoUpdate,shouldUpdateAutomatically

Declares how the module should react if any input field value changes. If set to True the output field values will be updated. Otherwise they will be cleared.

Values:

Title	Name	Deprecated Name
​Update	​Update	​TRUE
​Clear	​Clear	​FALSE

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
​Ok	​Ok
​Invalid input object	​Invalid input object
​Invalid input parameter	​Invalid input parameter
​Internal error	​Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Transformation matrix

name: outTransformationMatrix, type: Matrix, persistent: no

Transformation matrix from reference to template coordinate system

Hidden Fields

doNotClearOnFailedUpdate

name: doNotClearOnFailedUpdate, type: Bool, persistent: no

Prevents automated clear after update failed. This does not affect status fields. It enables the developer to analyze module’s state after failure.
