Rank4NB

MacroModule

genre	Kernel
author	Volker Dicken
package	FMEstable/ReleaseMeVis
definition	Rank4NB.def
see also	Rank, KernelEditor

Purpose

This macro simply wraps a Rank with a connected external plain 4 NB 5 element kernel for convenience.

For further documentation see the documentation of the Rank module.

Windows

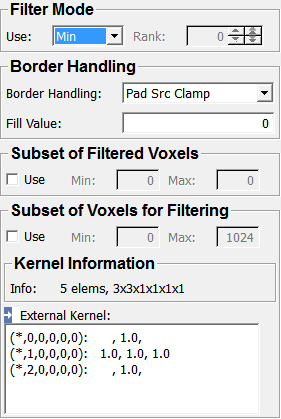

Default Panel

Input Fields

input0

name: input0, type: Image

Output Fields

output0

name: output0, type: Image

Parameter Fields

Field Index

Border Handling: Enum	Use (useIntervalOfFilteredVoxels): Bool
Fill Value: Double	Use (useIntervalOfVoxelsForFiltering): Bool
Max (intervalMaxOfFilteredVoxels): Double	useRank: Bool
Max (intervalMaxOfVoxelsForFiltering): Double
Min (intervalMinOfFilteredVoxels): Double
Min (intervalMinOfVoxelsForFiltering): Double
Rank: Integer
Use (filterMode): Enum

Visible Fields

Use (filterMode)

name: filterMode, type: Enum, default: Max

Values:

Title	Name
​Id	​Id
​Rank	​Rank
​Min	​Min
​Median	​Median
​Max	​Max
​Index	​Index

Rank

name: rank, type: Integer, default: 0

Border Handling

name: borderHandling, type: Enum, default: PadSrcClamp

Values:

Title	Name
​No Pad	​NoPad
​Pad Src Fill	​PadSrcFill
​Pad Dst Fill	​PadDstFill
​Pad Dst Fill With Orig	​PadDstFillWithOrig
​Pad Src Undefined	​PadSrcUndefined
​Pad Dst Undefined	​PadDstUndefined
​Pad Src Clamp	​PadSrcClamp

Fill Value

name: fillValue, type: Double, default: 0

Use (useIntervalOfFilteredVoxels)

name: useIntervalOfFilteredVoxels, type: Bool, default: FALSE

Min (intervalMinOfFilteredVoxels)

name: intervalMinOfFilteredVoxels, type: Double, default: 0

Max (intervalMaxOfFilteredVoxels)

name: intervalMaxOfFilteredVoxels, type: Double, default: 0

Use (useIntervalOfVoxelsForFiltering)

name: useIntervalOfVoxelsForFiltering, type: Bool, default: FALSE

Min (intervalMinOfVoxelsForFiltering)

name: intervalMinOfVoxelsForFiltering, type: Double, default: 0

Max (intervalMaxOfVoxelsForFiltering)

name: intervalMaxOfVoxelsForFiltering, type: Double, default: 1024

Hidden Fields

useRank

name: useRank, type: Bool, default: FALSE
