OpenIGTLinkStatusSender

MLModule

author	Daniel Romberg
package	FMEstable/ReleaseMeVis
dll	MLOpenIGTLinkCommunication
definition	MLOpenIGTLinkCommunication.def
see also	OpenIGTLinkStatusReceiver
keywords	message, communication, interface

Windows

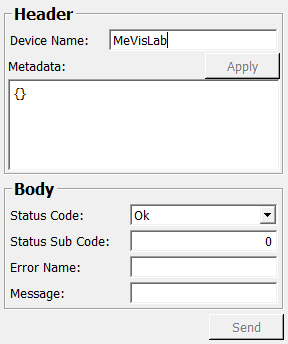

Default Panel

Input Fields

inCommunicationChannel

name: inCommunicationChannel, type: MLBase

Parameter Fields

Field Index

Device Name: String

Error Name: String

Message: String

Metadata: String

Send: Trigger

Status Code: Enum

Status Sub Code: Integer

Timestamp: Integer

Visible Fields

Device Name

name: deviceName, type: String, default: MeVisLab

Metadata

name: metadata, type: String, default: {}

Timestamp

name: timestamp, type: Integer, default: -1

Send

name: send, type: Trigger

Status Code

name: statusCode, type: Enum, default: STATUS_OK

Values:

Title	Name
​Invalid	​STATUS_INVALID
​Ok	​STATUS_OK
​Unknown Error	​STATUS_UNKNOWN_ERROR
​Panick Mode	​STATUS_PANICK_MODE
​Not Found	​STATUS_NOT_FOUND
​Access Denied	​STATUS_ACCESS_DENIED
​Busy	​STATUS_BUSY
​Time Out	​STATUS_TIME_OUT
​Overflow	​STATUS_OVERFLOW
​Checksum Error	​STATUS_CHECKSUM_ERROR
​Config Error	​STATUS_CONFIG_ERROR
​Resource Error	​STATUS_RESOURCE_ERROR
​Unknown Instruction	​STATUS_UNKNOWN_INSTRUCTION
​Not Ready	​STATUS_NOT_READY
​Manual Mode	​STATUS_MANUAL_MODE
​Disabled	​STATUS_DISABLED
​Not Present	​STATUS_NOT_PRESENT
​Unknown Version	​STATUS_UNKNOWN_VERSION
​Hardware Failure	​STATUS_HARDWARE_FAILURE
​Shut Down	​STATUS_SHUT_DOWN

Status Sub Code

name: statusSubCode, type: Integer, default: 0

Error Name

name: errorName, type: String

Message

name: message, type: String
