LoadYAML¶

MacroModule¶

genre	`Other`
author	`Jan-Martin Kuhnigk`
package	`FMEstable/ReleaseMeVis`
definition	LoadYAML.def
see also	`ReadYAML`
keywords	`yaml`, `json`, `config`, `file`, `load`, `open`, `python`, `object`

Purpose¶

Converts the content of a YAML (https://en.wikipedia.org/wiki/YAML) file into a python object.

Usage¶

Choose the source file at YAML File Name and press update. The loaded object will become available at outPythonObject.

Details¶

Note that an empty file will result as an error as a None object cannot be transmitted as a python object.

Windows¶

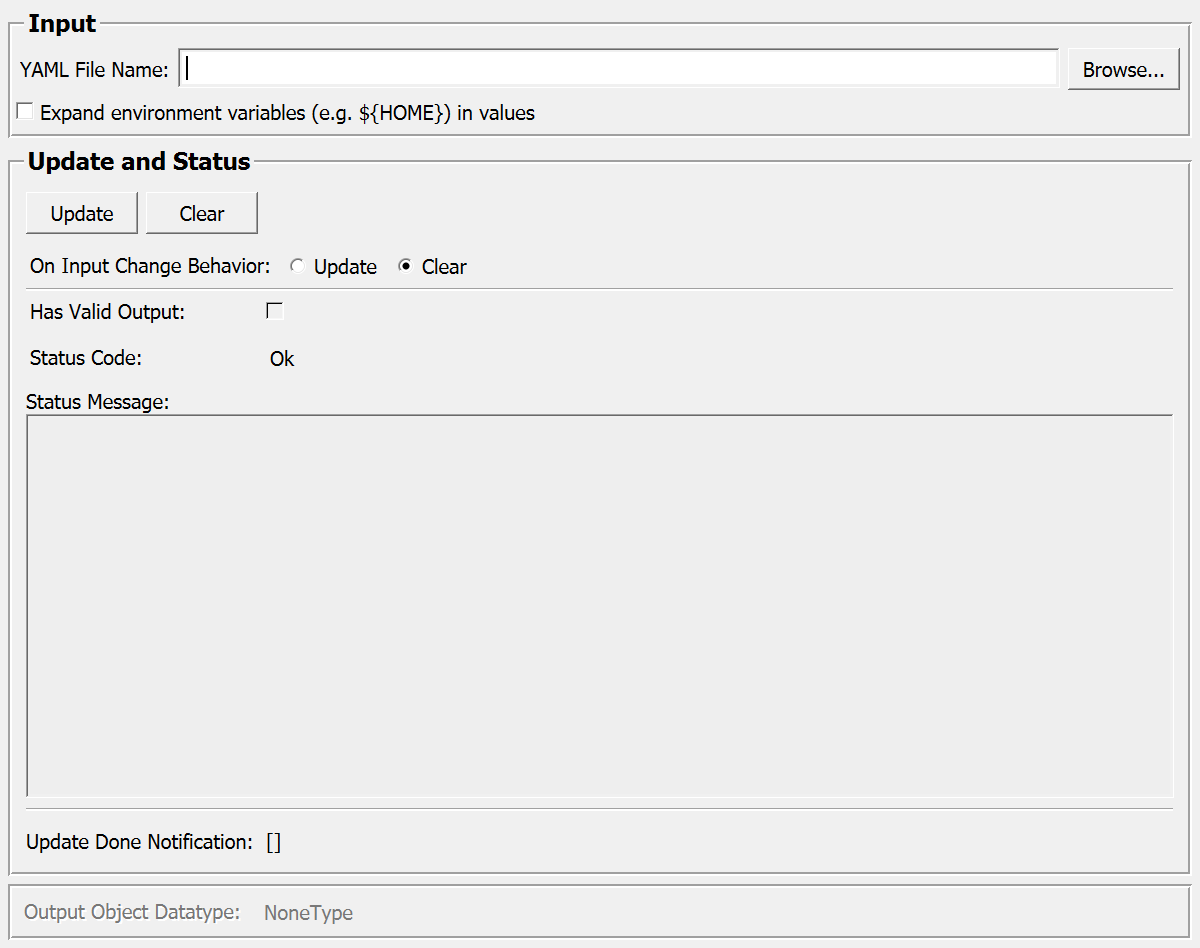

Default Panel¶

../../../Projects/YAMLSupport/Modules/mhelp/Images/Screenshots/LoadYAML._default.png

Output Fields¶

outPythonObject¶

name: outPythonObject, type: MLBase¶: Python object (string, number, list, dict) representing the YAML input file contents, or None on error/empty file.

Parameter Fields¶

Field Index¶

`[]`: `Trigger`	`Status Code`: `Enum`
`Clear`: `Trigger`	`Status Message`: `String`
`doNotClearOnFailedUpdate`: `Bool`	`Update`: `Trigger`
`Expand environment variables (e.g. ${HOME}) in values`: `Bool`	`YAML File Name`: `String`
`Has Valid Output`: `Bool`
`On Input Change Behavior`: `Enum`
`Output Object Datatype`: `String`
`Require valid file signature (depending on the used license)`: `Bool`

Visible Fields¶

YAML File Name¶

name: inFilename, type: String¶: Name of the YAML file to load.

Expand environment variables (e.g. ${HOME}) in values¶

name: inExpandEnvironmentVariables, type: Bool, default: FALSE¶: If enabled, values (not keys!) referencing valid environment variables via $ABC or ${ABC} are expanded.

Require valid file signature (depending on the used license)¶

name: inCheckSignatureInApplicationMode, type: Bool, default: FALSE¶

If enabled, the module will expect the YAML file to be signed by MeVisLab (it may also be encrypted) for the current license.

In particular, when used in a standalone application with a normal user (i.e. non-developer) license, the file must be signed for application usage, or it will be rejected.

Output Object Datatype¶

name: outDatatype, type: String, persistent: no¶: Datatype of the toplevel python object read.

Update¶

name: update, type: Trigger¶: Initiates update of all output field values.

Clear¶

name: clear, type: Trigger¶: Clears all output field values to a clean initial state.

On Input Change Behavior¶

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldAutoUpdate,shouldUpdateAutomatically¶: Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
Update	Update	TRUE
Clear	Clear	FALSE

[]¶

name: updateDone, type: Trigger, persistent: no¶: Notifies that an update was performed (Check status interface fields to identify success or failure).

Has Valid Output¶

name: hasValidOutput, type: Bool, persistent: no¶: Indicates validity of output field values (success of computation).

Status Code¶

name: statusCode, type: Enum, persistent: no¶: Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.
