DirectoryIterator

MacroModule

genre	FileMain
author	Daniel Romberg
package	FMEstable/ReleaseMeVis
definition	DirectoryIterator.def
keywords	walk, iterate, path, scan, recursive, file, folder

Windows

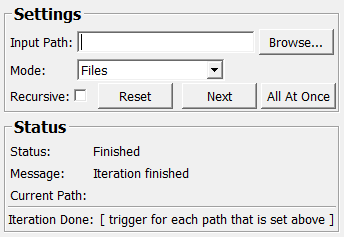

Default Panel

Parameter Fields

Field Index

[ trigger for each path that is set above ]: Trigger	Reset: Trigger
All At Once: Trigger	Status: Enum
Current Path: String
Input Path: String
Message: String
Mode: Enum
Next: Trigger
Recursive: Bool

Visible Fields

Input Path

name: inputPath, type: String

The input path to iterate over

Mode

name: mode, type: Enum, default: Files

Option whether to iterate over files, folders or both

Values:

Title	Name
​Files	​Files
​Directories	​Directories
​Files and Directories	​FilesAndDirectories

Recursive

name: recursive, type: Bool, default: FALSE

Flag whether to recursively scan the directory

Current Path

name: currentPath, type: String, persistent: no

The path of the current iteration

[ trigger for each path that is set above ]

name: iterationDone, type: Trigger, persistent: no

Trigger that is touched for each iteration after the path is set

Message

name: statusMessage, type: String, persistent: no

A status message indicating current state

Status

name: status, type: Enum, persistent: no

A status code indicating the current state

Values:

Title	Name
​Finished	​Finished
​Iterating	​Iterating
​Failure	​Failure

Next

name: next, type: Trigger

Calculates the next path

All At Once

name: allAtOnce, type: Trigger

Calculates all paths which is the same as pressing next until the iteration is finished

Reset

name: reset, type: Trigger

Resets the iteration to the beginning
