Purpose

The CurveInfo modules shows the properties of a CurveList and the contained CurveData object, or simply of a CurveData object.

Usage

Connect a valid curve list or curve data object to the module. In case of connecting a CurveList object, select the index of the curve you want to get information from. Touch “update” if automatic update is not enabled.

Windows

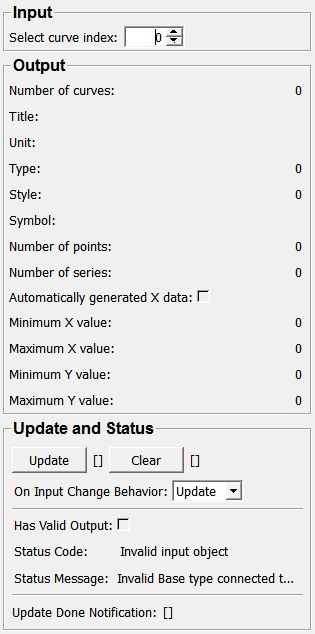

Default Panel

../../../Projects/CurveInfrastructure/CurveInformation/Modules/mhelp/Images/Screenshots/CurveInfo._default.png

Input Fields

inCurveObject

name: inCurveObject, type: MLBase, deprecated name: inCurve,inCurveList

Curve object (CurveData or CurveList) to get information from.

Parameter Fields

Field Index

[]: Trigger Number of curves: Integer Symbol: String
Automatically generated X data: Bool Number of points: Integer Title: String
Clear: Trigger Number of series: Integer Type: Integer
Has Valid Output: Bool On Input Change Behavior: Enum Unit: String
Maximum X value: Double Select curve index: Integer Update: Trigger
Maximum Y value: Double Status Code: Enum
Minimum X value: Double Status Message: String
Minimum Y value: Double Style: Integer

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldUpdateAutomatically,shouldAutoUpdate,inShouldAutoUpdate

Declares how the module should react if a value of an input field changes.

Values:

Title Name Deprecated Name
Update Update TRUE
Clear Clear FALSE

Status Code

name: statusCode, type: Enum, persistent: no, deprecated name: outStatusCode

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title Name
Ok Ok
Invalid input object Invalid input object
Invalid input parameter Invalid input parameter
Internal error Internal error

Status Message

name: statusMessage, type: String, persistent: no, deprecated name: status,outStatusMessage

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no, deprecated name: outHasValidResults

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Select curve index

name: inCurveIndex, type: Integer, default: 0, minimum: 0, deprecated name: inCurrentCurveIndex,curCurve

Index of selected curve from a connected CurveList object. If a CurveData object is connected the index will be ignored.

Number of curves

name: outNumberOfCurves, type: Integer, persistent: no, deprecated name: numCurves

Number of curves from connected input object.

Title

name: outCurveTitle, type: String, persistent: no, deprecated name: curveTitle

Title of curve.

Unit

name: outCurveUnit, type: String, persistent: no, deprecated name: curveUnit

Unit of curve.

Type

name: outCurveType, type: Integer, persistent: no, deprecated name: curveType

Type of curve.

Style

name: outCurveStyle, type: Integer, persistent: no, deprecated name: curveStyle

Style of curve.

Symbol

name: outCurveSymbol, type: String, persistent: no, deprecated name: curveSymbol

Symbol of curve.

Number of points

name: outNumberOfPoints, type: Integer, persistent: no, deprecated name: numPoints

Number of points of curve.

Number of series

name: outNumberOfSeries, type: Integer, persistent: no, deprecated name: numSeries

Number of series of curve.

Automatically generated X data

name: outCurveIsAutoX, type: Bool, persistent: no, deprecated name: isAutoX

Value of “isAutoX” property of curve.

Minimum X value

name: outXMin, type: Double, persistent: no, deprecated name: xMin

Minimum x value of curve.

Maximum X value

name: outXMax, type: Double, persistent: no, deprecated name: xMax

Maximum x value of curve.

Minimum Y value

name: outYMin, type: Double, persistent: no, deprecated name: yMin

Minimum y value of curve.

Maximum Y value

name: outYMax, type: Double, persistent: no, deprecated name: yMax

Maximum y value of curve.
