CreateCSOMapping

MLModule

genre	CSOModule
author	Jan Hendrik Moltz
package	FMEstable/ReleaseMeVis
dll	MLCSOMiscModules
definition	MLCSOMiscModules.def
see also	CSOMerge
keywords	map, match, correspond, merge

Purpose

Creates a mapping between closest CSOs in two CSOLists as input to CSOMerge. Use it to update a CSOList by corresponding CSOs in another list.

Usage

Connect two CSOLists and the image on which they were created. Press update if autoUpdate is not enabled.

Details

The CSOLists have to fulfill the following requirements: they must not be empty, all CSOs must be closed and parallel. The module assumes that all CSOs lie on slices of the input image. A CSO cso from inCSOList0 are mapped to CSOs from inCSOList1 as follows: All CSOs on the same slice as cso are candidates for mapping. Of all candidates, the one whose center of gravity is closest to the center of gravity of cso is selected. The output is a string that can be connected to CSOMerge.updateCSOsBySecondListMap.

Windows

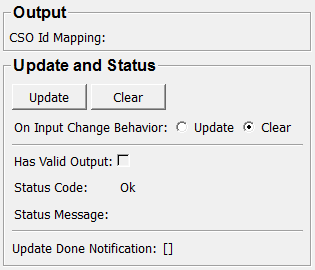

Default Panel

Input Fields

input0

name: input0, type: Image

Image on which the CSOs were drawn, used to infer whether two CSOs are on the same slice.

inCSOList0

name: inCSOList0, type: MLBase

CSOList that is the reference for mapping (corresponds to CSOMerge.inCSOList).

inCSOList1

name: inCSOList1, type: MLBase

CSOList with candidates for mapping (corresponds to CSOMerge.inputCSOList1).

Parameter Fields

Field Index

[]: Trigger

Clear: Trigger

CSO Id Mapping: String

Has Valid Output: Bool

On Input Change Behavior: Enum

Status Code: Enum

Status Message: String

Update: Trigger

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldUpdateAutomatically,shouldAutoUpdate

Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
Update	Update	TRUE
Clear	Clear	FALSE

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
Ok	Ok
Invalid input object	Invalid input object
Invalid input parameter	Invalid input parameter
Internal error	Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

CSO Id Mapping

name: outCSOIdMapping, type: String

A string describing the mapping of CSOs that can be connected to CSOMerge.updateCSOsBySecondListMap.
