CostGraphClosestVertex

MLModule

author	Christian Schumann
package	FMEstable/ReleaseMeVis
dll	MLCostGraph
definition	MLCostGraph.def
see also	XMarkerListToCostGraph, CostGraphCheapestPath, CostGraphEdgeLengthCostPlugin
keywords	k-d, kd, tree

Purpose

Searches the closest vertex in the cost graph for the given point using a k-d tree.

Usage

Connect a XMarkerListToCostGraph or a similar module to inCostGraph and define the Point.

Details

The cost graph is a base object that carries a Boost graph in the form of an adjacency list. In addition it carries a k-d tree (implementation from the PCL) which is used by this module to find the vertex in the cost graph that is closest to the given Point.

Windows

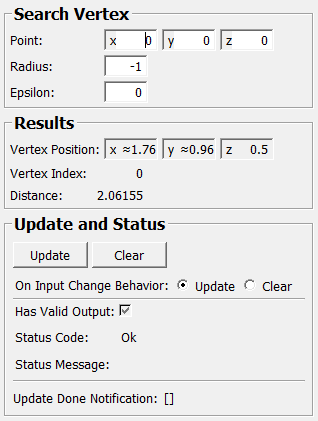

Default Panel

Input Fields

inCostGraph

name: inCostGraph, type: MLBase

Base field containing the cost graph.

Parameter Fields

Field Index

[]: Trigger	Radius: Float
Clear: Trigger	Status Code: Enum
Distance: Double	Status Message: String
doNotClearOnFailedUpdate: Bool	Update: Trigger
Epsilon: Float	Vertex Index: Integer
Has Valid Output: Bool	Vertex Position: Vector3
On Input Change Behavior: Enum
Point: Vector3

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldUpdateAutomatically,shouldAutoUpdate

Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
​Update	​Update	​TRUE
​Clear	​Clear	​FALSE

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
​Ok	​Ok
​Invalid input object	​Invalid input object
​Invalid input parameter	​Invalid input parameter
​Internal error	​Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Radius

name: inRadius, type: Float, default: -1

Maximum radius used for nearest neighbor search in the cost graph. Is ignored if smaller than 0.

Epsilon

name: inEpsilon, type: Float, default: 0

Precision used for nearest neighbor search in the cost graph.

Point

name: inPoint, type: Vector3, default: 0 0 0

Point for which the closest vertex is searched.

Vertex Index

name: outVertexIndex, type: Integer, persistent: no

Index of the closest vertex in the graph.

Vertex Position

name: outVertexPosition, type: Vector3, persistent: no

Coordinates of the closest vertex in the graph.

Distance

name: outDistance, type: Double, persistent: no

Distance between the input point and the closest vertex in the graph.

Hidden Fields

doNotClearOnFailedUpdate

name: doNotClearOnFailedUpdate, type: Bool, persistent: no

Prevents automated clear after update failed. This does not affect status fields. It enables the developer to analyze module’s state after failure.
