CSOWorldBox

MLModule

author	Christian Kanthak
package	FMEstable/ReleaseMeVis
dll	MLCSOBox
definition	CSOWorldBox.def
keywords	CSO, world, bounding, box

Purpose

The module calculates a world axes aligned bounding box from a given CSOList.

The result consists of two 3-D vectors. They reflect the most minimal and maximal coordinates using world axes as reference coordinate system.

Please consider that CSOs only know world coordinates. Coordinates of t, u or c dimension are not treated.

Usage

Connect a valid CSOList object and image. Press Update afterwards to initiate calculation.

Windows

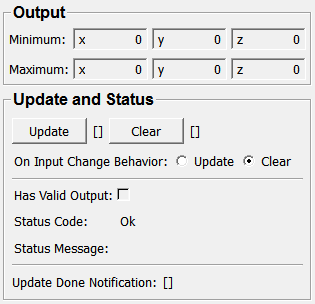

Default Panel

Input Fields

inCSOList

name: inCSOList, type: MLBase

Input CSOs.

Parameter Fields

Field Index

[]: Trigger	Update: Trigger
Clear: Trigger
Has Valid Output: Bool
Maximum: Vector3
Minimum: Vector3
On Input Change Behavior: Enum
Status Code: Enum
Status Message: String

Visible Fields

Update

name: update, type: Trigger

Initiates update of all output field values.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldUpdateAutomatically,shouldAutoUpdate

Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
​Update	​Update	​TRUE
​Clear	​Clear	​FALSE

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
​Ok	​Ok
​Invalid input object	​Invalid input object
​Invalid input parameter	​Invalid input parameter
​Internal error	​Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Minimum

name: outMinimum, type: Vector3, persistent: no

Minimum position.

Maximum

name: outMaximum, type: Vector3, persistent: no

Maximum position.
