WEMLevelSetRemesh

MLModule

author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLOpenVDB
definition	MLOpenVDB.def
inherits from	WEMLevelSetFilterBase
keywords	voxelize, reduce, adaptive

Purpose

The WEMLevelSetRemesh allows to remesh a WEM by voxelizing it into a level set grid and re-creation of the surface on the grid. It makes use of the OpenVDB (http://www.openvdb.org/) library.

Windows

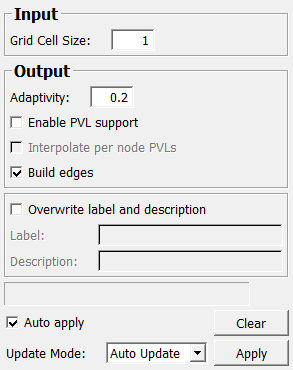

Default Panel

Parameter Fields

Field Index

Adaptivity: Double	Grid Cell Size: Double	Overwrite label and description: Bool
Apply: Trigger	id: Integer	progress: Float
Auto Apply: Bool	Interpolate per node PVLs: Bool	shouldComputeNormals: Bool
Build Edges: Bool	isProcessing: Bool	triangulationMode: Enum
Clear: Trigger	Label: String	Update Mode: Enum
Description: String	listenToFinishNotifications: Bool	workDirectlyOnInputWEMs: Bool
elapsedTime: Float	listenToRepaintNotifications: Bool
Enable PVL support: Bool	listenToSelectionChangedNotifications: Bool

Visible Fields

Auto Apply

name: autoApply, type: Bool, default: TRUE

see WEMGenerator.autoApply

Update Mode

name: updateMode, type: Enum, default: AutoUpdate, deprecated name: autoUpdate

see WEMGenerator.updateMode

Apply

name: apply, type: Trigger

see WEMGenerator.apply

Clear

name: clear, type: Trigger

see WEMGenerator.clear

Overwrite label and description

name: overwriteLabelDescription, type: Bool, default: FALSE

see WEMGenerator.overwriteLabelDescription

Label

name: label, type: String

see WEMGenerator.label

Description

name: description, type: String

see WEMGenerator.description

Grid Cell Size

name: gridCellSize, type: Double, default: 1

see WEMLevelSetFilterBase.gridCellSize

Adaptivity

name: adaptivity, type: Double, default: 0.2

see WEMLevelSetFilterBase.adaptivity

Build Edges

name: buildEdges, type: Bool, default: TRUE

see WEMLevelSetFilterBase.buildEdges

Enable PVL support

name: enablePVLSupport, type: Bool, default: FALSE

see WEMLevelSetFilterBase.enablePVLSupport

Interpolate per node PVLs

name: interpolatePerNodePVLs, type: Bool, default: FALSE

see WEMLevelSetFilterBase.interpolatePerNodePVLs

Hidden Fields

isProcessing

name: isProcessing, type: Bool, persistent: no

see WEMGenerator.isProcessing

elapsedTime

name: elapsedTime, type: Float, persistent: no

see WEMGenerator.elapsedTime

id

name: id, type: Integer, default: 0

see WEMGenerator.id

shouldComputeNormals

name: shouldComputeNormals, type: Bool, default: TRUE

see WEMGenerator.shouldComputeNormals

workDirectlyOnInputWEMs

name: workDirectlyOnInputWEMs, type: Bool, default: FALSE

see WEMProcessor.workDirectlyOnInputWEMs

listenToFinishNotifications

name: listenToFinishNotifications, type: Bool, default: TRUE

see WEMProcessor.listenToFinishNotifications

listenToRepaintNotifications

name: listenToRepaintNotifications, type: Bool, default: TRUE

see WEMProcessor.listenToRepaintNotifications

listenToSelectionChangedNotifications

name: listenToSelectionChangedNotifications, type: Bool, default: TRUE

see WEMProcessor.listenToSelectionChangedNotifications

progress

name: progress, type: Float, persistent: no

see WEMProcessor.progress

triangulationMode

name: triangulationMode, type: Enum, default: Strip

see WEMProcessor.triangulationMode
