WEMGeodesicClip

MLModule
genre WEMProcessing
author MeVis Medical Solutions AG
package MeVisLab/Standard
dll MLWEMModules
definition MLWEMModules.def
see also WEMClip
inherits from WEMProcessor
keywords distance

Purpose

The module WEMGeodesicClip clips a WEM surface on base of position(s) and a radius.

That means that all WEM faces are removed from the input WEM if their points are within the spheres defined by a list of positions and a general distance.

Windows

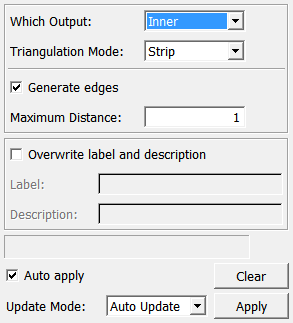

Default Panel

../../../Modules/ML/MLWEMModules/mhelp/Images/Screenshots/WEMGeodesicClip._default.png

Input Fields

inWEM

name: inWEM, type: WEM(MLBase)
For accessing this object via scripting see the Scripting Reference: MLWEMWrapper.

inputXMarkerList

name: inputXMarkerList, type: XMarkerList(MLBase)
For accessing this object via scripting see the Scripting Reference: MLXMarkerListWrapper.

Output Fields

outWEM

name: outWEM, type: WEM(MLBase)
For accessing this object via scripting see the Scripting Reference: MLWEMWrapper.

Parameter Fields

Visible Fields

Auto Apply

name: autoApply, type: Bool, default: TRUE

If checked, the module computes anew on any parameter change.

see also WEMGenerator.autoApply

Update Mode

name: updateMode, type: Enum, default: AutoUpdate, deprecated name: autoUpdate

Defines how this module should react on any input field change.

see also WEMGenerator.updateMode

Apply

name: apply, type: Trigger

If pressed, the module computes anew.

see also WEMGenerator.apply

Clear

name: clear, type: Trigger

If checked, the output WEM is cleared (made empty).

see also WEMGenerator.clear

Overwrite label and description

name: overwriteLabelDescription, type: Bool, default: FALSE

If checked, label and description strings are set in the output WEM to Label and Description.

see also WEMGenerator.overwriteLabelDescription

Label

name: label, type: String

Sets a label string to the output WEM.

see also WEMGenerator.label

Description

name: description, type: String

Sets a description string to the output WEM.

see also WEMGenerator.description

Triangulation Mode

name: triangulationMode, type: Enum, default: Strip

Defines the triangulation mode for clipped polygons.

see also WEMProcessor.triangulationMode

Generate Edges

name: generateEdges, type: Bool, default: TRUE

If checked, the output WEM is guaranteed to have edges.

Which Output

name: whichOutput, type: Enum, default: Inner

Defines which of the clipped WEM is being put out.

Values:

Title Name
Both Both
Inner Inner
Outer Outer

Maximum Distance

name: maximumDistance, type: Double, default: 1, minimum: 0.01

Sets the maximum distance that defines the influence sphere(s) around the input markers.

Hidden Fields

isProcessing

name: isProcessing, type: Bool, persistent: no

see WEMGenerator.isProcessing

elapsedTime

name: elapsedTime, type: Float, persistent: no

see WEMGenerator.elapsedTime

id

name: id, type: Integer, default: 0

see WEMGenerator.id

shouldComputeNormals

name: shouldComputeNormals, type: Bool, default: TRUE

see WEMGenerator.shouldComputeNormals

workDirectlyOnInputWEMs

name: workDirectlyOnInputWEMs, type: Bool, default: FALSE

see WEMProcessor.workDirectlyOnInputWEMs

listenToFinishNotifications

name: listenToFinishNotifications, type: Bool, default: TRUE

see WEMProcessor.listenToFinishNotifications

listenToRepaintNotifications

name: listenToRepaintNotifications, type: Bool, default: TRUE

see WEMProcessor.listenToRepaintNotifications

listenToSelectionChangedNotifications

name: listenToSelectionChangedNotifications, type: Bool, default: TRUE

see WEMProcessor.listenToSelectionChangedNotifications

progress

name: progress, type: Float, persistent: no

see WEMProcessor.progress
