SoShaderPipelineSurfaceShader

InventorModule
author MeVis Medical Solutions AG
package MeVisLab/Standard
dll SoShaderPipeline
definition SoShaderPipeline.def

Purpose

The SoShaderPipelineSurfaceShader module allows to define the properties of the surface that are used by the lighting model. The lighting itself is given via the SoShaderPipelineLightModel.

A typical use case for a surface shader is to change material properties of the surface, e.g. the diffuse/specular color and specularity. It can make use of texture to have per-pixel material properties, e.g. a specular map, an alpha map, a normal map etc.

The resulting material parameters are used by the light model for each individual light. Thus, surface shading and the lighting model can be exchanged separatly.

Usage

The module is derived from the SoShaderPipelineFunction module and extends the surface shader step of the pipeline. If per-fragment shading is enabled, the surface shader is applied in the fragment shader. If per-vertex shading is used instead, the surface shader will only run per vertex, to normal/texture mapping will not work well in per-vertex shading.

The following state variables are typically modified by a surface shader:

state float surfaceShininess
state vec3  surfaceDiffuse
state float surfaceAlpha
state vec3  surfaceSpecular

You can also add your own surface properties to the state and make use of them inside of a custom light model (see SoShaderPipelineLightModel).

You can add your own uniforms and texture samplers using the GLSL shader framework of MeVisLab, e.g. SoShaderParameter3f, SoGVRShaderParameterPosition and SoMLSampler3D.

Windows

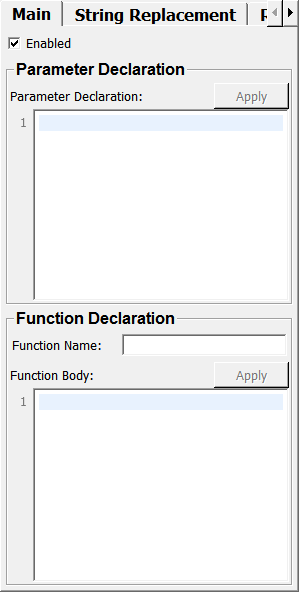

Default Panel

../../../Modules/Inventor/SoShaderPipeline/mhelp/Images/Screenshots/SoShaderPipelineSurfaceShader._default.png

Parameter Fields

Field Index

Enabled: Bool Replacement1: String
Function Body: String Replacement2: String
Function Display: String Replacement3: String
Function Name: String
Parameter Declaration: String
Replaced1: String
Replaced2: String
Replaced3: String

Visible Fields

Enabled

name: enabled, type: Bool, default: TRUE

Enable the surface shader.

Function Name

name: functionName, type: String

Name of the surface shader.

Function Body

name: functionBody, type: String

The surface shader body.

Parameter Declaration

name: parameterDeclaration, type: String

See SoShaderPipelineFunction.parameterDeclaration.

Function Display

name: functionDisplay, type: String, persistent: no

Replaced1

name: replaced1, type: String

Replacement1

name: replacement1, type: String

Replaced2

name: replaced2, type: String

Replacement2

name: replacement2, type: String

Replaced3

name: replaced3, type: String

Replacement3

name: replacement3, type: String
