SoShaderPipelineFunction

InventorModule

author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoShaderPipeline
definition	SoShaderPipeline.def

Purpose

The SoShaderPipelineFunction allows to extend the SoShaderPipeline with custom steps.

Based on the SuperShader concept, the rendering shader is subdivided into a dynamic shader pipeline which allows for an interactive addition of custom shader code to the volume rendering. A pipeline step is modeled as a subset of several shader pipeline functions, which contain the GLSL shader code.

Since pipeline functions have no return value, a globally defined struct is used for communication. The struct is passed as input and output parameter (state) to the pipeline functions. Input values are read from the struct, output values are written into the struct.

The module SoShaderPipelineFunction allows to implement a custom pipeline function, where the function body as well as the parameters can be edited. Thus, custom pipeline functions can be attached to a pipeline step in order to add or replace shader code (see modification type).

You can add your own uniforms, texture samplers and vertex attributes using the GLSL shader framework shader framework of MeVisLab, e.g. SoShaderParameter3f, SoGVRShaderParameterPosition and SoMLSampler3D.

Details

The following state is available in a default pipeline shader (with per-fragment shading):

Vertex Shader State

Initial state:

state vec4 vertexPosition
state vec4 vertexColor
state vec3 vertexNormal

After eye transformation:

state vec3 vertexEyeNormal
state vec4 vertexEyePosition

After projection:

state vec4 projectedPosition

Fragment Shader State

Initial state:

state vec4 vertexEyePosition
state vec3 vertexEyeNormal
state vec4 vertexColor
state vec3 eyeViewingDirection

After surface shader setup:

state float surfaceShininess
state vec3  surfaceDiffuse
state float surfaceAlpha
state vec3  surfaceSpecular

After lighting:

state vec4 resultColor

Lighting

The lighting is calculated in eye space. This is so because the OpenGL fixed function lights are in eye space by default and it was straight forward to work in eye space. This means that you should use the vertexEyePosition, vertexEyeNormal and eyeViewingDirection for custom lighting calculations.

Future versions might do lighting in tangent space as well, this would make sense if normal mapping is used in a surface shader. This would mainly be a performance optimization, because if light positions/dirs, view dir etc. would all be in tangent space, the per pixel fetch of the normal would not require to be mapped to eye space.

Shader version and extensions

Inside of the function or the include, you can place a:

#version GLSLVersion

directive to indicate, which GLSL version you want to use. The shader pipeline will parse these and use the highest shader version that is requested.

In addition to that, you can use the the standard #extension directive in your function. All extension directives will be moved to the top of the resulting shader.

Example::

#version 120 #extension GL_EXT_texture_array : enable

The highest GLSL version that can be used with the SoShaderPipeline is 130. Starting with shader version 140, all OpenGL state uniforms in the shader have been removed. A future version of the shader pipeline (and Open Inventor) might set alternative uniforms that match the deprecated OpenGL state, so that using newer GLSL versions become possible.

Transferring state between shaders

To avoid the manual creation of varying variable, there is an automatism that transfers state values from the vertex shader state to the fragment shader state automatically. This works by automatically transferring any vertex state that starts with vertex to the fragment shader. How this happens is transparent to the user. So if you add a new state to the vertex shader, e.g. vertexCurvature, you can just use the same state in the fragment shader, by using the same name.

Vertex attributes can be added manually, but it is also possible to prefix a state variable name with vertexArray_. For instance, adding the state variable vertexArray_NodeCurvature will automatically add a NodeCurvature attribute to the shader and copy its value to the state. If the state is used in the fragment shader, it is automatically transfered as a varying.

Tips

To get started, have a look at the SoShaderPipelineDiagnosis to see how a generated shader looks and what kind of state variables and steps are available by default.

Windows

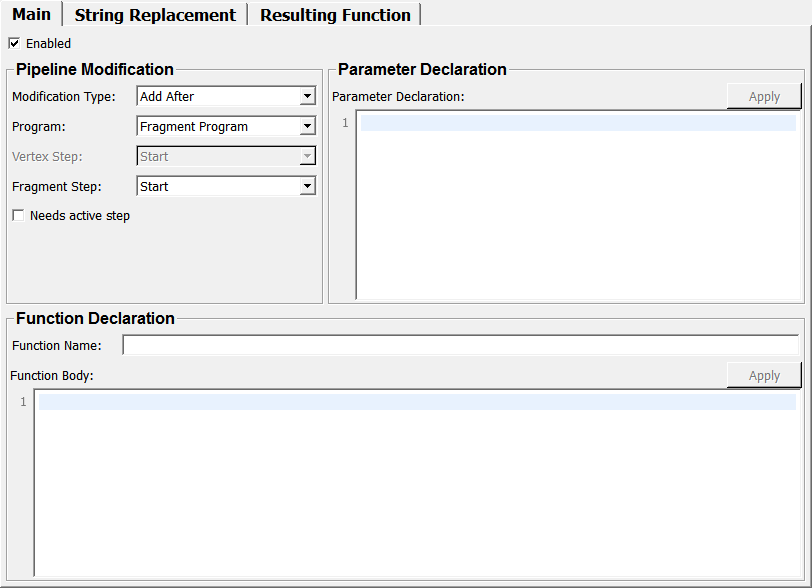

Default Panel

Parameter Fields

Field Index

Enabled: Bool	Program: Enum
Fragment Step: Enum	Vertex Step: Enum
Function Body: String
Function Display: String
Function Name: String
Modification Type: Enum
Needs Active Step: Bool
Parameter Declaration: String

Visible Fields

Enabled

name: enabled, type: Bool, default: TRUE

Enables the function.

Function Name

name: functionName, type: String

Defines the (optional) function name.

Function Body

name: functionBody, type: String

The implementation of the function body. The state variable contains the current pipeline state.

Parameter Declaration

name: parameterDeclaration, type: String

Allows to declare parameters which are used in the custom function body. Possible parameters:

• uniform: for a GLSL uniform parameter
• varying: for a GLSL varying parameter
• attribute: for a GLSL vertex attribute parameter
• state: for a input/output pipeline struct parameter
• include: for a custom shader header or pipeline library function

Using uniform, varying and state will add the declared variable declaration to the header string. Using include will add the declaration of the specified include to the header.

Syntax:

uniform TYPE identifier;
uniform TYPE identifier [size];
varying TYPE identifier;
attribute TYPE identifier;
state TYPE identifier;
state TYPE identifier = DEFAULTVALUE;
include name;

Entries in the parameter declaration field are separated by newline. The ; and = characters can be ommitted. TYPE can be any GLSL type, identifier can be any GLSL identifier (e.g. variable name). DEFAULTVALUE can be a GLSL statement to initialize a variable which matches the respective type and can be called in a struct constructor. For includes, name is a user defined identifier for the include. In every line, character after the expected number of words are ignored, which can e.g. be used for comments.

For includes, you can either use the SoShaderPipeline builtin includes (see Tips and Tricks), or define your own includes with the SoShaderPipelineInclude module.

Function Display

name: functionDisplay, type: String, persistent: no

Shows the complete function.

Modification Type

name: modificationType, type: Enum, default: ADD_AFTER

Defines which operation is applied.

Values:

Title	Name	Description
Add After	ADD_AFTER	Add function after the given step.
Add Before	ADD_BEFORE	Add function before the given step.
Replace	REPLACE	Replace the given step with this function.
Remove	REMOVE	Remove the given step.
Add Before Inorder	ADD_BEFORE_INORDER	Like ADD_BEFORE, but keeps order of functions

Program

name: program, type: Enum, default: Fragment Program

Selects the shader program type of the function.

Values:

Title	Name
Fragment Program	Fragment Program
Vertex Program	Vertex Program

Vertex Step

name: vertexStep, type: Enum, default: START

Selects the vertex step.

Values:

Title	Name
Start	START
Calculate Eye Position	CALCULATE_EYE_POSITION
Calculate Texture Coord	CALCULATE_TEXTURE_COORD
Vertex Surface Shader	VERTEX_SURFACE_SHADER
Vertex Lighting	VERTEX_LIGHTING
Project Vertex	PROJECT_VERTEX
Calculate Point Sprite Size	CALCULATE_POINT_SPRITE_SIZE
End	END
Vertex Add Ambient	VERTEX_ADD_AMBIENT
Vertex Add Emissive	VERTEX_ADD_EMISSIVE

Fragment Step

name: fragmentStep, type: Enum, default: START

Selects the fragment step.

Values:

Title	Name
Start	START
Point Sprite Setup	POINT_SPRITE_SETUP
Depthpeel Discard	DEPTHPEEL_DISCARD
Fragment Surface Setup	FRAGMENT_SURFACE_SETUP
Fragment Surface Shader	FRAGMENT_SURFACE_SHADER
Fragment Lighting	FRAGMENT_LIGHTING
Texturing	TEXTURING
Fog	FOG
Write Fragment	WRITE_FRAGMENT
End	END
Fragment Add Ambient	FRAGMENT_ADD_AMBIENT
Fragment Add Emissive	FRAGMENT_ADD_EMISSIVE

Needs Active Step

name: needsActiveStep, type: Bool, default: FALSE

If enabled, the function is only added if the given step is active.
