SoRotateDiscDragger

InventorModule
genre InventorDraggers
author Silicon Graphics Inc
package MeVisLab/Standard
definition inventor.def

Purpose

SoRotateDiscDragger is a simple dragger that rotates about the z axis of its local space. The feel of the rotation is as if you were spinning a record on a turntable or rotating the volume knob of a radio. The local space is determined by its location in the scene graph. Transformation nodes placed before it will affect both the dragger and the direction of motion.

This node has a Rotation field which always reflects its orientation in local space. If you set the field, the dragger will rotate accordingly. You can also connect fields of other nodes or engines from this one to make them follow the dragger’s rotation.

Windows

Default Panel

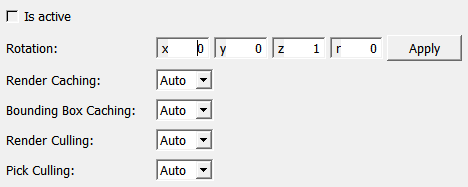

../../../Modules/Inventor/InventorBase/mhelp/Images/Screenshots/SoRotateDiscDragger._default.png

Output Fields

self

name: self, type: SoNode

Parameter Fields

Visible Fields

Is Active

name: isActive, type: Bool, persistent: no

TRUE when mouse is down and dragging, else FALSE.

Rotation

name: rotation, type: Rotation, default: 0 0 1 0

Orientation of the dragger. Three lines along the x, y, and z axes form the central star shape, which you can drag with the mouse to rotate the dragger.

Hidden Fields

enable

name: enable, type: Bool, default: TRUE
