SoGVRDepthPeel

InventorModule

genre	VolRend
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoGVR
definition	soGVR.def

Purpose

The SoGVRDepthPeel allows to render transparent geometry with correct transparency blending (without the need of sorting triangles) inside of the volume rendering of the SoGVRVolRen module. It is an image-space algorithm, so it has pixel precision and even allows intersecting transparent triangles. It works by rendering the connected scene in a multiple passes and peels one RGBA layer per pass using a double depth test. The SoGVRVolumeRenderer module is then switched into a multi-pass mode that renders the peeled layers and the volume data in an interleaved fashion. The resulting image shows transparent geometries inside of the volume rendering. In addition to this, the peeled depth layers can be used to render the volume differently inside and outside of the geometry layers. This allows to do masking or depth clipping the volume to geometry, which may even change interactively.

This module is not yet optimized, so you will see a performance drop due to the multipass rendering. Future version might make use of occlusion culling to speed up rendering a lot.

Details

This module requires OpenGL 2.0 and the following OpenGL extensions:

ARB_depth_texture, EXT_framebuffer_object

Tips

The module can be used for clipping the volume against geometry as well, instead of rendering the peeled layers.

Windows

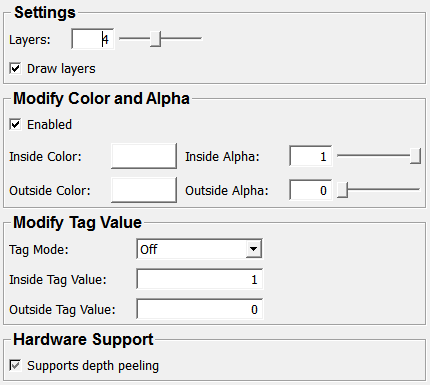

Default Panel

Input Fields

The node accepts any number of inventor inputs and renders the scene below using depth peeling.

Output Fields

self

name: self, type: SoNode

a node that should be put in front of the SoGVRVolumeRenderer

Parameter Fields

Field Index

boundingBoxCaching: Enum	opaqueBackgroundPass: Bool	simulatedAlpha: Float
debugLayers: Integer	Outside Alpha: Float	Supports Depth Peeling: Bool
Draw Layers: Bool	Outside Color: Color	Tag Mode: Enum
Enabled: Bool	Outside Tag Value: Integer	useStencilBuffer: Bool
Inside Alpha: Float	pickCulling: Enum
Inside Color: Color	renderCaching: Enum
Inside Tag Value: Integer	renderCulling: Enum
Layers: Integer	sceneDepthCompare: Bool

Visible Fields

Supports Depth Peeling

name: supportsDepthPeeling, type: Bool, persistent: no, deprecated name: supportsFBO

Indicates if depth peeling is supported.

Layers

name: layers, type: Integer, default: 4, minimum: 1, maximum: 8

Defines how many layers should be peeled.

Enabled

name: modifyRGBA, type: Bool, default: TRUE

Enables modification of the color/alpha of the volume depending on the geometry.

Draw Layers

name: drawLayers, type: Bool, default: TRUE

Enables the drawing of the geometry layers

Inside Alpha

name: insideAlpha, type: Float, default: 1, minimum: 0, maximum: 1

Defines the alpha factor inside of the geometry.

Outside Alpha

name: outsideAlpha, type: Float, default: 0, minimum: 0, maximum: 1

Defines the alpha factor outside of the geometry.

Inside Color

name: insideColor, type: Color, default: 1 1 1

Defines the color factor inside of the geometry.

Outside Color

name: outsideColor, type: Color, default: 1 1 1

Defines the color outside of the geometry.

Inside Tag Value

name: insideTagValue, type: Integer, default: 1

Defines the tag volume inside of the geometry.

Outside Tag Value

name: outsideTagValue, type: Integer, default: 0

Defines the tag value outside of the geometry.

Tag Mode

name: tagMode, type: Enum, default: Off

Defines how the depth peeling influences the tag value.

Values:

Title	Name	Description
Set As Tag Value	SetAsTagValue	Set the tag value via Outside Tag Value and Inside Tag Value when outside/inside the geometry.
Off	Off	Do not change the tag value.

Hidden Fields

renderCaching

name: renderCaching, type: Enum, default: AUTO

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

boundingBoxCaching

name: boundingBoxCaching, type: Enum, default: AUTO

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

renderCulling

name: renderCulling, type: Enum, default: AUTO

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

pickCulling

name: pickCulling, type: Enum, default: AUTO

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

useStencilBuffer

name: useStencilBuffer, type: Bool, default: FALSE

simulatedAlpha

name: simulatedAlpha, type: Float, default: 1

opaqueBackgroundPass

name: opaqueBackgroundPass, type: Bool, default: TRUE

sceneDepthCompare

name: sceneDepthCompare, type: Bool, default: FALSE

debugLayers

name: debugLayers, type: Integer, default: 0
