SoCustomExaminerViewer¶

InventorModule¶

genre	`View3D`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoCustomViewer`
definition	SoCustomViewer.def
see also	`SoExaminerViewer`, `SoSpacemouseAccess`, `SoPowerMateAccess`, `SoAppleRemoteAccess`
inherits from	`SoExaminerViewer`
keywords	`customizable`, `rendering`, `scene`, `movie`, `recording`, `navigation`, `zoom`, `3D`

Purpose¶

The module SoCustomExaminerViewer provides additional camera control buttons for axial, sagittal, and coronal views and allows to customize the display of all viewer buttons.

Furthermore, it adds camera control to the picking mode by taking advantage of an six degrees of freedom input device and the user’s bi-manual control skills.

Usage¶

Connect an Open Inventor scene graph to the viewer.

Details¶

The display of the following button groups can be customized:

Buttons	Function
	Picking and Viewing mode
	Home and Set Home camera parameters
	View entire scene (View All)
	Seek
	Axial, Sagittal, Coronal, and Opposite Side View
	Projection Type (perspective, orthographic)
	Display ‘Dolly’ instead of ‘Zoom’ for perspective projection type

A Spacemouse or Spaceball can be used to control the virtual camera of the SoCustomExaminerViewer by using the less-dominant hand of the user. The camera is positioned on a virtual sphere surrounding the displayed scene whereby an automatic reorientation maintains the focal point. The distance of the virtual camera to the focal point can be changed by moving the cap or ball of the input device to or away from the screen in front of the user. The position of the virtual camera on the sphere is controlled by the rotation of the cap or ball.

Windows¶

Default Panel¶

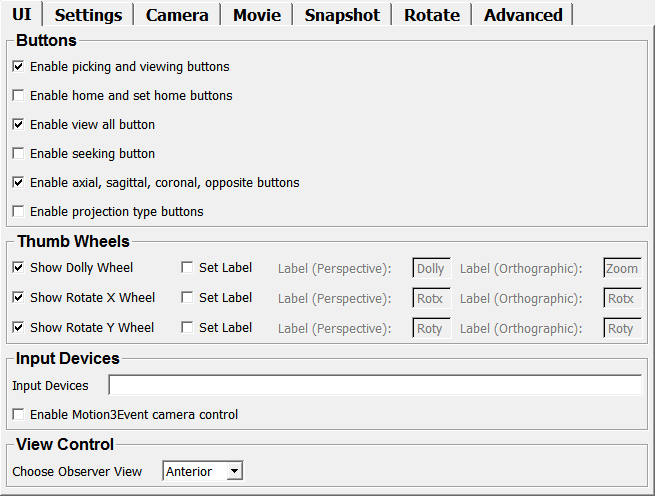

../../../Modules/Inventor/SoCustomViewer/mhelp/Images/Screenshots/SoCustomExaminerViewer._default.png

Input Fields¶

child¶

name: child, type: SoNode¶

Output Fields¶

outputImage¶

name: outputImage, type: Image¶

self (hidden)¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

`Animation`: `Bool`	`Grab Framerate`: `Float`	`Reset Position`: `Trigger`
`antialiasing`: `Bool`	`Grab Key Focus`: `Bool`	`Right Button Events`: `Enum`
`antialiasingNumPasses`: `Integer`	`Headlight`: `Bool`	`Rotation Angle`: `Float`
`Append count`: `Bool`	`height`: `Float`	`Rotation Axis`: `Vector3`
`Apply`: `Enum`	`Initial`: `Enum`	`Rotation Current Step`: `Integer`
`Auto apply user setting`: `Bool`	`Input Devices`: `String`	`Rotation Steps`: `Integer`
`Auto Clipping`: `Bool`	`Interactive Draw Style`: `Enum`	`rotationStopped`: `Trigger`
`Auto Redraw When Recording`: `Bool`	`isCameraStored`: `Bool`	`Save Camera`: `Bool`
`Automatic View All`: `Bool`	`Keyboard Events`: `Enum`	`Save Position`: `Trigger`
`Background`: `Color`	`Label (Orthographic) (dollyWheelOrthographicText)`: `String`	`Set Label (overwriteDollyWheelLabel)`: `Bool`
`border`: `Bool`	`Label (Orthographic) (rotXWheelOrthographicText)`: `String`	`Set Label (overwriteRotXWheelLabel)`: `Bool`
`boundingBoxCaching`: `Enum`	`Label (Orthographic) (rotYWheelOrthographicText)`: `String`	`Set Label (overwriteRotYWheelLabel)`: `Bool`
`Cancel`: `Trigger`	`Label (Perspective) (dollyWheelPerspectiveText)`: `String`	`Show Dolly Wheel`: `Bool`
`Choose Observer View`: `Enum`	`Label (Perspective) (rotXWheelPerspectiveText)`: `String`	`Show Rotate X Wheel`: `Bool`
`Continue`: `Trigger`	`Label (Perspective) (rotYWheelPerspectiveText)`: `String`	`Show Rotate Y Wheel`: `Bool`
`Create Movie`: `Trigger`	`Left Button Events`: `Enum`	`Show snapshot`: `Bool`
`Create Snapshot`: `Trigger`	`Mid Button Events`: `Enum`	`Snap Count`: `Integer`
`Current Camera`: `Enum`	`miSelectedPointingAction`: `String`	`Snapshot Format`: `Enum`
`Cursor`: `Bool`	`miSelectedPointingActionActive`: `Bool`	`Start (startRecording)`: `Trigger`
`Decoration`: `Bool`	`miSelectedPointingActionProvider`: `String`	`Start (startRotation)`: `Trigger`
`Draw Style`: `Enum`	`Mouse Interaction`: `String`	`Status`: `String`
`Enable axial, sagittal, coronal, opposite buttons`: `Bool`	`Movie Framerate`: `Float`	`Stereo Viewing`: `Bool`
`Enable home and set home buttons`: `Bool`	`nearDistance`: `Float`	`Stop (stopRecording)`: `Trigger`
`Enable Key Commands`: `Bool`	`Num Samples`: `Integer`	`Stop (stopRotation)`: `Trigger`
`Enable Motion3Event camera control`: `Bool`	`Offset`: `Float`	`Stop animating`: `Trigger`
`Enable picking and viewing buttons`: `Bool`	`orientation`: `Rotation`	`Store Current Orientation`: `Trigger`
`Enable projection type buttons`: `Bool`	`Output Movie File`: `String`	`Store Current State`: `Bool`
`Enable rotation with shift key and mouse wheel`: `Bool`	`outputSnapshotFileWritten`: `String`	`transformDeltaIn`: `Matrix`
`Enable seeking button`: `Bool`	`perspective`: `Bool`	`Transparency`: `Enum`
`Enable view all button`: `Bool`	`pickCulling`: `Enum`	`Update`: `Trigger`
`Enable zooming with mouse wheel`: `Bool`	`Popup menu`: `Bool`	`Use Sample Buffers`: `Bool`
`farDistance`: `Float`	`position`: `Vector3`	`User Orientation`: `Rotation`
`feedback`: `Bool`	`Record Rotation`: `Bool`	`View All`: `Trigger`
`feedbackSize`: `Integer`	`Record Single Frame`: `Trigger`	`viewAllFlag`: `Bool`
`File`: `String`	`renderCaching`: `Enum`	`Viewing`: `Bool`
`focalDistance`: `Float`	`renderCulling`: `Enum`	`zoomIn`: `Trigger`
`forceRedrawOnInteraction`: `Bool`	`rescanScene`: `Trigger`	`zoomOut`: `Trigger`

Visible Fields¶

Background¶

name: background, type: Color, default: 0 0 0¶: Sets the background color.

Transparency¶

name: transparency, type: Enum, default: BLEND¶: Defines the type of transparency used in the rendering.

Use Sample Buffers¶

name: useSampleBuffers, type: Bool, default: FALSE¶: If checked, the viewer renders polygons with anti-aliasing (MSAA).

Num Samples¶

name: numSamples, type: Integer, default: 8¶: Sets the number of sample points for anti-aliasing (MSAA).

Grab Key Focus¶

name: grabKeyFocus, type: Bool, default: TRUE¶

If checked, the viewer grabs the key focus whenever the mouse cursor is moved over the viewer.

Otherwise, the use has to click onto the viewer to focus it.

Enable Key Commands¶

name: enableKeyCommands, type: Bool, default: TRUE¶

see SoRenderArea.enableKeyCommands

Snapshot Format¶

name: snapshotFormat, type: Enum, default: SNAPSHOT_RGB¶: Defines the format for snapshots.

Start (startRecording)¶

name: startRecording, type: Trigger¶: If pressed, the recording of a movie is started.

Stop (stopRecording)¶

name: stopRecording, type: Trigger¶: If pressed, a recording in process is stopped.

Cancel¶

name: cancelRecording, type: Trigger¶: If pressed, a recording in process is stopped and all saved images are being removed.

Record Single Frame¶

name: singleFrame, type: Trigger¶: If pressed, the currently rendered image is saved to disc as a part of a movie.

Continue¶

name: continueRecording, type: Trigger¶: If pressed, the recording of a movie is paused if running, or resumed if paused.

Create Movie¶

name: createAvi, type: Trigger¶: If pressed, a movie of the frames you have recorded after pressing the Start button is created.

Output Movie File¶

name: outputAviFile, type: String¶

Sets the name of the output movie file.

If no filename is given, the movies are automatically created in the screenshot gallery.

Auto Redraw When Recording¶

name: autoRedrawWhenRecording, type: Bool, default: TRUE¶: If checked, the scene is getting redrawn anew when recording even if the scene is not being changed.

Grab Framerate¶

name: frameRate, type: Float, default: 7¶: Sets the refresh frame rate.

Movie Framerate¶

name: frameRateAvi, type: Float, default: 15¶: Sets the frame rate for the target movie.

Status¶

name: status, type: String, persistent: no¶: Shows status information.

File¶

name: outputSnapshotFile, type: String, default: none¶: Sets the file name for the output snapshot file.

Append count¶

name: autoIncreaseFile, type: Bool, default: TRUE¶: If checked, the filenames bear the frame count in their names.

Update¶

name: updateMLOutput, type: Trigger¶: If pressed, the output ML image to current viewer image is being updated.

Create Snapshot¶

name: doSnapshot, type: Trigger¶: If pressed, a snapshot of the current rendering is saved.

Show snapshot¶

name: showSnapshotWithShell, type: Bool, default: FALSE¶: If checked, a newly created snapshot is opened with the system’s default image viewer.

Snap Count¶

name: snapCount, type: Integer, default: 0¶: Sets a counter offset for consecutive snapshot file names.

Input Devices¶

name: inputDevicesList, type: String¶: Sets the device class names separated by spaces.

Headlight¶

name: headlight, type: Bool, default: TRUE¶: If checked, the scene is illuminated with a default headlight.

Decoration¶

name: decoration, type: Bool, default: TRUE¶: If checked, the viewer’s border are decorated with tool buttons.

Viewing¶

name: viewing, type: Bool, default: TRUE¶: If checked, the viewer is in navigation mode (rotating, panning). Otherwise, the viewer is in picking mode.

Auto Clipping¶

name: autoClipping, type: Bool, default: TRUE¶: If checked, the viewer clips the scene automatically at the default (frontal) clipping plane.

Draw Style¶

name: drawStyle, type: Enum, default: VIEW_AS_IS¶: Defines the drawing style for still images.

Interactive Draw Style¶

name: interactiveDrawStyle, type: Enum, default: VIEW_LOW_COMPLEXITY¶: Defines the drawing style for rendering while navigating.

View All¶

name: viewAll, type: Trigger¶: If pressed, the viewer centers on the bounding box of the attached scene.

Save Position¶

name: saveHomePosition, type: Trigger¶: If pressed, the current viewing direction and the focal point are being saved.

Reset Position¶

name: resetToHomePosition, type: Trigger¶: If pressed, a previously saved home viewing direction and focal point are being restored.

Initial¶

name: initialCameraOrientation, type: Enum, default: CAMERA_KEEP_AS_IS¶: Defines how the camera should view the scene initially (on opening the viewer or on pressing View All).

Apply¶

name: applyCameraOrientation, type: Enum, default: CAMERA_KEEP_AS_IS¶: Defines how the camera should view the scene on setting a value here.

Current Camera¶

name: cameraType, type: Enum, default: CAMERA_PERSPECTIVE¶

Defines the type of the internal camera.

This is overwritten when using an external camera.

Auto apply user setting¶

name: autoApplyUserSettingOrientation, type: Bool, default: FALSE¶: If checked, the viewing direction defined in Apply is set as soon as the value in User Orientation is changed.

User Orientation¶

name: userSettingOrientation, type: Rotation, default: 0 0 1 0¶: Sets a user camera orientation.

Store Current Orientation¶

name: storeAsUserSetting, type: Trigger¶: If pressed, the current camera viewing direction is stored in User Orientation.

Automatic View All¶

name: automaticViewAll, type: Bool, default: FALSE¶: If checked, the viewer automatically shows the whole scene (computed on base of the bounding box) on opening the viewer or changing the attached scene.

Store Current State¶

name: storeCurrentState, type: Bool, default: TRUE¶: If checked, the viewer stores the current state every tick of settings like using a headlight, the draw style, showing decoration.

Save Camera¶

name: saveCamera, type: Bool, default: TRUE¶: If checked, the viewer saves if a perspective or an orthographic camera is used.

Cursor¶

name: cursor, type: Bool, default: TRUE¶: If checked, the mouse cursor over the viewer reflect the interaction/navigation state.

Stereo Viewing¶

name: stereoViewing, type: Bool, default: FALSE¶: If checked, stereo viewing is enabled. Note that stereo viewing needs to be supported by your graphic card.

Offset¶

name: stereoOffset, type: Float, default: 3¶: Sets an offset value for stereo viewing. This value describes how far the two alternating cameras are apart.

Left Button Events¶

name: button1events, type: Enum, default: TO_VIEWER¶: Deprecated, rather use field Mouse Interaction below.

Mid Button Events¶

name: button2events, type: Enum, default: TO_VIEWER¶: Deprecated, rather use field Mouse Interaction below.

Right Button Events¶

name: button3events, type: Enum, default: TO_VIEWER¶: Deprecated, rather use field Mouse Interaction below.

Keyboard Events¶

name: keyEvents, type: Enum, default: TO_VIEWER¶: Defines whether the viewer or the scene (or both) should react on keyboard events.

Animation¶

name: animationEnabled, type: Bool, default: FALSE¶: If checked, the scene will keep on turning if it is interactively turned and the mouse button is released in motion.

Stop animating¶

name: stopAnimating, type: Trigger¶: If pressed, all animations are stopped.

Mouse Interaction¶

name: mouseInteraction, type: String¶

Sets a sequence of mouse interactions as a string.

Syntax: ‘(*);function1:combo1,combo2,…;function2:…’

A * at the beginning clears the default mouse functions.

Available functions: pick, spin, pan, dolly, seek

Combos are represented by characters ‘123sca’

(left, middle, right, shift, control, alt resp.)

Big letters ‘SCA’ mean ‘don’t care about this modifier’

Example: ‘* spin:1 pan:1s,1c,2 dolly:12,2c,1sc’

Start (startRotation)¶

name: startRotation, type: Trigger¶: If pressed, a rotating animation is started.

Stop (stopRotation)¶

name: stopRotation, type: Trigger¶: If pressed, a rotating animation in progress is stopped.

Rotation Axis¶

name: rotationAxis, type: Vector3, default: 0 1 0¶: Sets a rotation axis for a rotation animation.

Rotation Angle¶

name: rotationAngle, type: Float, default: 360¶: Sets a rotation angle for a rotation animation.

Rotation Steps¶

name: rotationSteps, type: Integer, default: 80¶: Sets the number of steps for a rotation animation.

Rotation Current Step¶

name: rotationCurrentStep, type: Integer, persistent: no¶: Shows the current rotation animation step.

Record Rotation¶

name: recordRotation, type: Bool, default: TRUE¶: If checked, the rotation animation is recorded once it has started.

Enable zooming with mouse wheel¶

name: wheelZoomEnabled, type: Bool, default: FALSE¶

see SoExaminerViewer.wheelZoomEnabled

Enable rotation with shift key and mouse wheel¶

name: wheelRotationEnabled, type: Bool, default: FALSE¶

see SoExaminerViewer.wheelRotationEnabled

Enable picking and viewing buttons¶

name: enablePickNView, type: Bool, default: TRUE¶: If checked, buttons for toggling picking/viewing mode are shown.

Enable home and set home buttons¶

name: enableHome, type: Bool, default: FALSE¶: If checked, buttons for set/go to home are shown/

Enable view all button¶

name: enableViewAll, type: Bool, default: TRUE¶: If checked, a view all button is shown.

Enable seeking button¶

name: enableSeek, type: Bool, default: FALSE¶: If checked, a seeking button is shown.

Enable axial, sagittal, coronal, opposite buttons¶

name: enableASC, type: Bool, default: TRUE¶: If checked, buttons for axial, sagittal, coronal and opposite viewing are shown.

Enable projection type buttons¶

name: enableProjType, type: Bool, default: FALSE¶: If checked, a button for toggling perspective/orthographic view is shown.

Show Rotate X Wheel¶

name: enableRotXWheel, type: Bool, default: TRUE¶

Show Rotate Y Wheel¶

name: enableRotYWheel, type: Bool, default: TRUE¶

Show Dolly Wheel¶

name: enableDollyWheel, type: Bool, default: TRUE¶

Set Label (overwriteDollyWheelLabel)¶

name: overwriteDollyWheelLabel, type: Bool, default: FALSE, deprecated name: enableDolly¶: If checked, a button for dolly is shown instead of a zoom button.

Set Label (overwriteRotXWheelLabel)¶

name: overwriteRotXWheelLabel, type: Bool, default: FALSE¶

Set Label (overwriteRotYWheelLabel)¶

name: overwriteRotYWheelLabel, type: Bool, default: FALSE¶

Label (Perspective) (dollyWheelPerspectiveText)¶

name: dollyWheelPerspectiveText, type: String, default: Dolly¶

Label (Perspective) (rotXWheelPerspectiveText)¶

name: rotXWheelPerspectiveText, type: String, default: Rotx¶

Label (Perspective) (rotYWheelPerspectiveText)¶

name: rotYWheelPerspectiveText, type: String, default: Roty¶

Label (Orthographic) (dollyWheelOrthographicText)¶

name: dollyWheelOrthographicText, type: String, default: Zoom¶

Label (Orthographic) (rotXWheelOrthographicText)¶

name: rotXWheelOrthographicText, type: String, default: Rotx¶

Label (Orthographic) (rotYWheelOrthographicText)¶

name: rotYWheelOrthographicText, type: String, default: Roty¶

Enable Motion3Event camera control¶

name: enableM3Control, type: Bool, default: FALSE¶: If checked, the viewer evaluates SoMotion3 events emitted by device drivers (e.g. by a SoQtSpacemouse).

Choose Observer View¶

name: chooseView, type: Enum, default: VIEW_ANTERIOR¶

Defines a predefined view.

Note that this works only if the scene’s camera has already been located by the viewer.

Values:

Title	Name
Anterior	VIEW_ANTERIOR
Posterior	VIEW_POSTERIOR
Left	VIEW_LEFT
Right	VIEW_RIGHT
Superior	VIEW_SUPERIOR
Inferior	VIEW_INFERIOR

Hidden Fields¶

renderCaching¶

name: renderCaching, type: Enum, default: AUTO¶

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

boundingBoxCaching¶

name: boundingBoxCaching, type: Enum, default: AUTO¶

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

renderCulling¶

name: renderCulling, type: Enum, default: AUTO¶

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

pickCulling¶

name: pickCulling, type: Enum, default: AUTO¶

Values:

Title	Name
On	ON
Off	OFF
Auto	AUTO

border¶

name: border, type: Bool, default: FALSE¶

antialiasing¶

name: antialiasing, type: Bool, default: FALSE¶

antialiasingNumPasses¶

name: antialiasingNumPasses, type: Integer, default: 1¶

outputSnapshotFileWritten¶

name: outputSnapshotFileWritten, type: String, default: none¶

miSelectedPointingAction¶

name: miSelectedPointingAction, type: String, persistent: no¶

see SoRenderArea.miSelectedPointingAction

miSelectedPointingActionProvider¶

name: miSelectedPointingActionProvider, type: String, persistent: no¶

see SoRenderArea.miSelectedPointingActionProvider

miSelectedPointingActionActive¶

name: miSelectedPointingActionActive, type: Bool, persistent: no¶

see SoRenderArea.miSelectedPointingActionActive

rescanScene¶

name: rescanScene, type: Trigger¶

viewAllFlag¶

name: viewAllFlag, type: Bool, default: FALSE¶

isCameraStored¶

name: isCameraStored, type: Bool, default: FALSE¶

perspective¶

name: perspective, type: Bool, default: TRUE¶

height¶

name: height, type: Float, default: 0¶

position¶

name: position, type: Vector3, default: 0 0 0¶

orientation¶

name: orientation, type: Rotation, default: 0 0 1 0¶

nearDistance¶

name: nearDistance, type: Float, default: 0¶

farDistance¶

name: farDistance, type: Float, default: 0¶

focalDistance¶

name: focalDistance, type: Float, default: 0¶

forceRedrawOnInteraction¶

name: forceRedrawOnInteraction, type: Bool, default: FALSE¶

feedback¶

name: feedback, type: Bool, default: FALSE¶

feedbackSize¶

name: feedbackSize, type: Integer, default: 32¶

rotationStopped¶

name: rotationStopped, type: Trigger¶

zoomIn¶

name: zoomIn, type: Trigger¶

zoomOut¶

name: zoomOut, type: Trigger¶

transformDeltaIn¶

name: transformDeltaIn, type: Matrix, default: 1 0 0 0, 0 1 0 0, 0 0 1 0, 0 0 0 1¶

SoCustomExaminerViewer¶

Purpose¶

Usage¶

Details¶

Windows¶

Default Panel¶

Input Fields¶

child¶

Output Fields¶

outputImage¶

self (hidden)¶

Parameter Fields¶

Field Index¶

Visible Fields¶

Background¶

Transparency¶

Use Sample Buffers¶

Num Samples¶

Grab Key Focus¶

Enable Key Commands¶

Snapshot Format¶

Start (startRecording)¶

Stop (stopRecording)¶

Cancel¶

Record Single Frame¶

Continue¶

Create Movie¶

Output Movie File¶

Auto Redraw When Recording¶

Grab Framerate¶

Movie Framerate¶

Status¶

File¶

Append count¶

Update¶

Create Snapshot¶

Show snapshot¶

Snap Count¶

Input Devices¶

Headlight¶

Decoration¶

Popup menu¶

Viewing¶

Auto Clipping¶

Draw Style¶

Interactive Draw Style¶

View All¶

Save Position¶

Reset Position¶

Initial¶

Apply¶

Current Camera¶

Auto apply user setting¶

User Orientation¶

Store Current Orientation¶

Automatic View All¶

Store Current State¶

Save Camera¶

Cursor¶

Stereo Viewing¶

Offset¶

Left Button Events¶

Mid Button Events¶

Right Button Events¶

Keyboard Events¶

Animation¶

Stop animating¶

Mouse Interaction¶

Start (startRotation)¶

Stop (stopRotation)¶

Rotation Axis¶

Rotation Angle¶

Rotation Steps¶

Rotation Current Step¶

Record Rotation¶

Enable zooming with mouse wheel¶

Enable rotation with shift key and mouse wheel¶

Enable picking and viewing buttons¶

Enable home and set home buttons¶

Enable view all button¶
