Scale

MLModule

genre	Scale
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	MLMiscModules
definition	MLMiscModules.def
see also	ImagePropertyConvert, MemoryCache, MinMaxScan
keywords	minimum, maximum, scan, data, type, cast, conversion, range, signed, unsigned, int8, int16, int32, byte, char, short, int, float, long, double

Purpose

The module Scale scales the input image value to another interval.

Source and target scale interval can be defined by the user. The source interval can be determined from the input image by scanning the data for the exact range or by just getting the static image minimum and maximum.

Data type changes due to changed minimum and maximum values can be handled automatically or manually be the user.

This module only works on scalar voxel types.

Windows

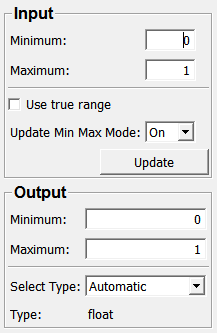

Default Panel

Input Fields

input0

name: input0, type: Image

Output Fields

output0

name: output0, type: Image

Parameter Fields

Field Index

Maximum (inputMax): Double	Use True Range: Bool
Maximum (outputMax): Double
Minimum (inputMin): Double
Minimum (outputMin): Double
Select Type: Enum
Type: String
Update: Trigger
Update Min Max Mode: Enum

Visible Fields

Minimum (inputMin)

name: inputMin, type: Double, default: 0, deprecated name: FromMinimum,windowMinimum

Sets the input minimum value.

If the real input values are lower than this value, they are clamped.

Maximum (inputMax)

name: inputMax, type: Double, default: 1, deprecated name: FromMaximum,windowMaximum

Sets the input maximum value.

If the real input values are higher than this value, they are clamped.

Update

name: update, type: Trigger, deprecated name: GetMinMax

If pressed, the module updates the output image.

Update Min Max Mode

name: updateMode, type: Enum, default: AutoUpdateMinMaxOn, deprecated name: autoGetMinMax

Defines the mode for updating the min/max fields.

Values:

Title	Name	Deprecated Name	Description
Off	AutoUpdateMinMaxOff	Off,FALSE	Nothing changes on changing the input image.
On	AutoUpdateMinMaxOn	AutoClear,TRUE,AutoUpdate	On changing the input image, the Minimum and Maximum values are set by scanning the input image if Use True Range is checked.

Use True Range

name: useTrueRange, type: Bool, default: FALSE, deprecated name: ScanForMinMax

If checked and the Update Min Max Mode is set to AutoUpdateMinMaxOn, the module scans the input image on an input image change for the real min/max values.

Select Type

name: typeSelect, type: Enum, default: Automatic, deprecated name: OutputDataType

Defines the data type of the output image.

Values:

Title	Name	Description
Automatic	Automatic	The output data type is determined automatically. The smallest possible data type is chosen for the actual value range with the least precision loss.
Input Data Type	Input Data Type	The input image’s data type is set.
UInt8	UInt8
Int8	Int8
UInt16	UInt16
Int16	Int16
UInt32	UInt32
Int32	Int32
Float	Float
Double	Double
UInt64	UInt64
Int64	Int64

Minimum (outputMin)

name: outputMin, type: Double, default: 0, deprecated name: outputMinimum,ToMinimum

Sets the minimum value of the output image.

Values of the input image are scaled and mapped to the interval of the output image values.

Maximum (outputMax)

name: outputMax, type: Double, default: 1, deprecated name: ToMaximum,outputMaximum

Sets the maximum value of the output image.

Values of the input image are scaled and mapped to the interval of the output image values.

Type

name: outputType, type: String, persistent: no, deprecated name: UsedOutDataType

Shows the data type of the output image.
