FanInVector

MacroModule
genre Vector
author MeVis Medical Solutions AG
package MeVisLab/Standard
definition helpers.def
see also SyncVector
keywords multiple, input, break, loop

Purpose

The module FanInVector takes multiple vectors as inputs and always provides the vector that was last changed as output vector.

Usage

The module can be useful in constellations where several modules partly represent the same data, for example a position.

Simply connect these module’s vector fields to one of the input vector fields and connect the output vector field to the module’s vector fields. The position then is consistent in all the modules involved.

Windows

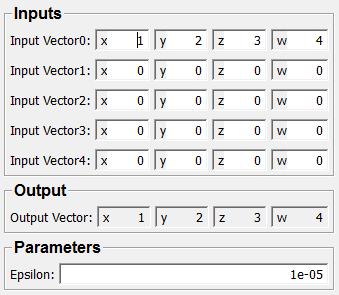

Default Panel

../../../Modules/Macros/Helpers/mhelp/Images/Screenshots/FanInVector._default.png

Parameter Fields

Visible Fields

Output Vector

name: outputVector, type: Vector4, default: 0 0 0 0

Shows the value of the last changed input vector.

Epsilon

name: epsilon, type: Float, default: 9.9999997e-06

Sets a value to detect a change in a vector.
